Product Details
＋
OREI 4K HDMI Extender Balun up to 40 KM

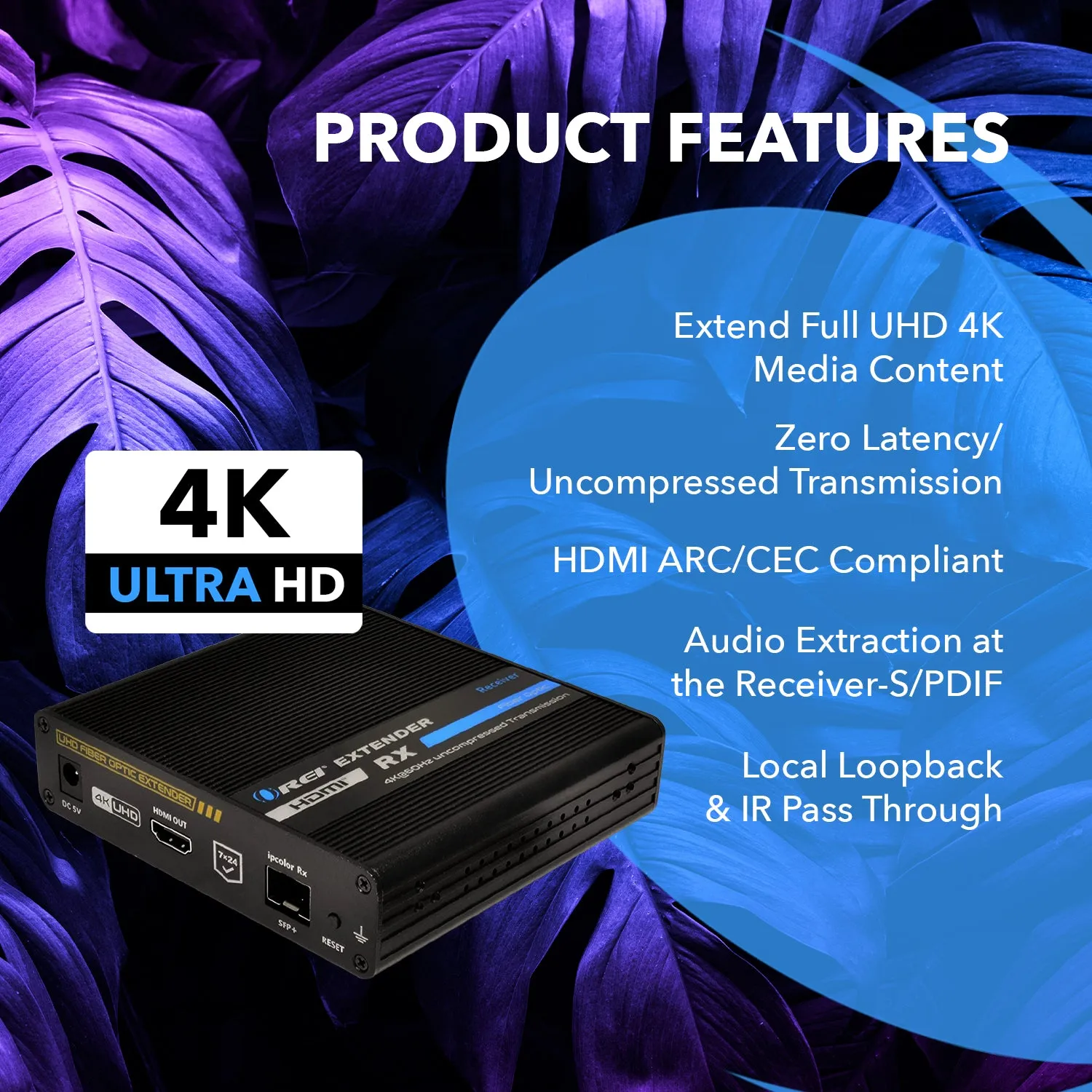

Key Features:
- Supports 4K@60Hz, HDR10
- Support zero latency, uncompressed transmission of video signals
- The maximum transmission distance is 40km while using a single-mode cable & optical module
- The maximum transmission distance is 1km while using a multi-mode cable & module

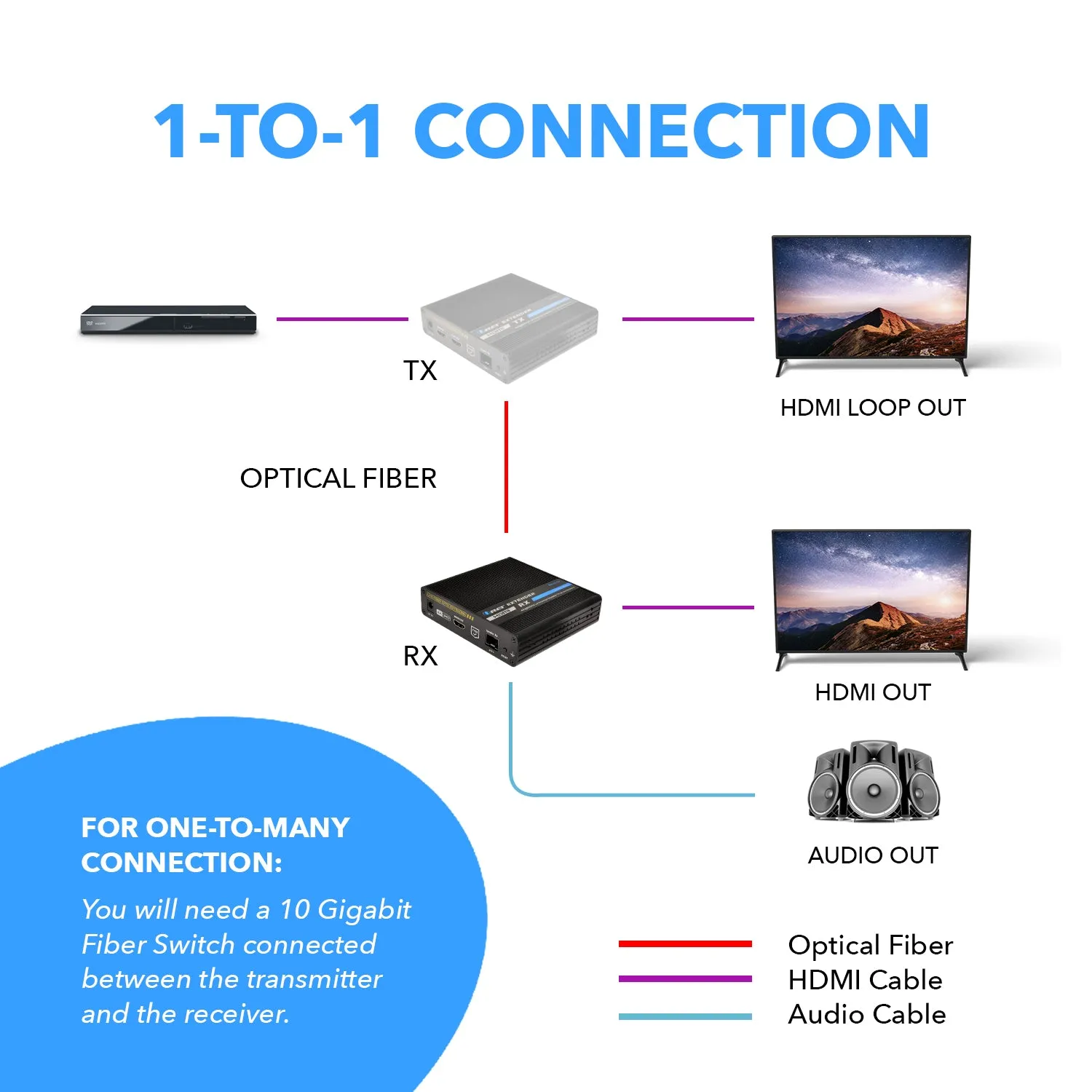

- Support one to one & one to many connections through the 10Gb switch
- Supports switch cascading
- Supports bi-directional IR pass back
- Supports HDMI ARC
- Support CEC
- Support RS-232 passthrough & command control
- Transmitter & Receivers sold separately

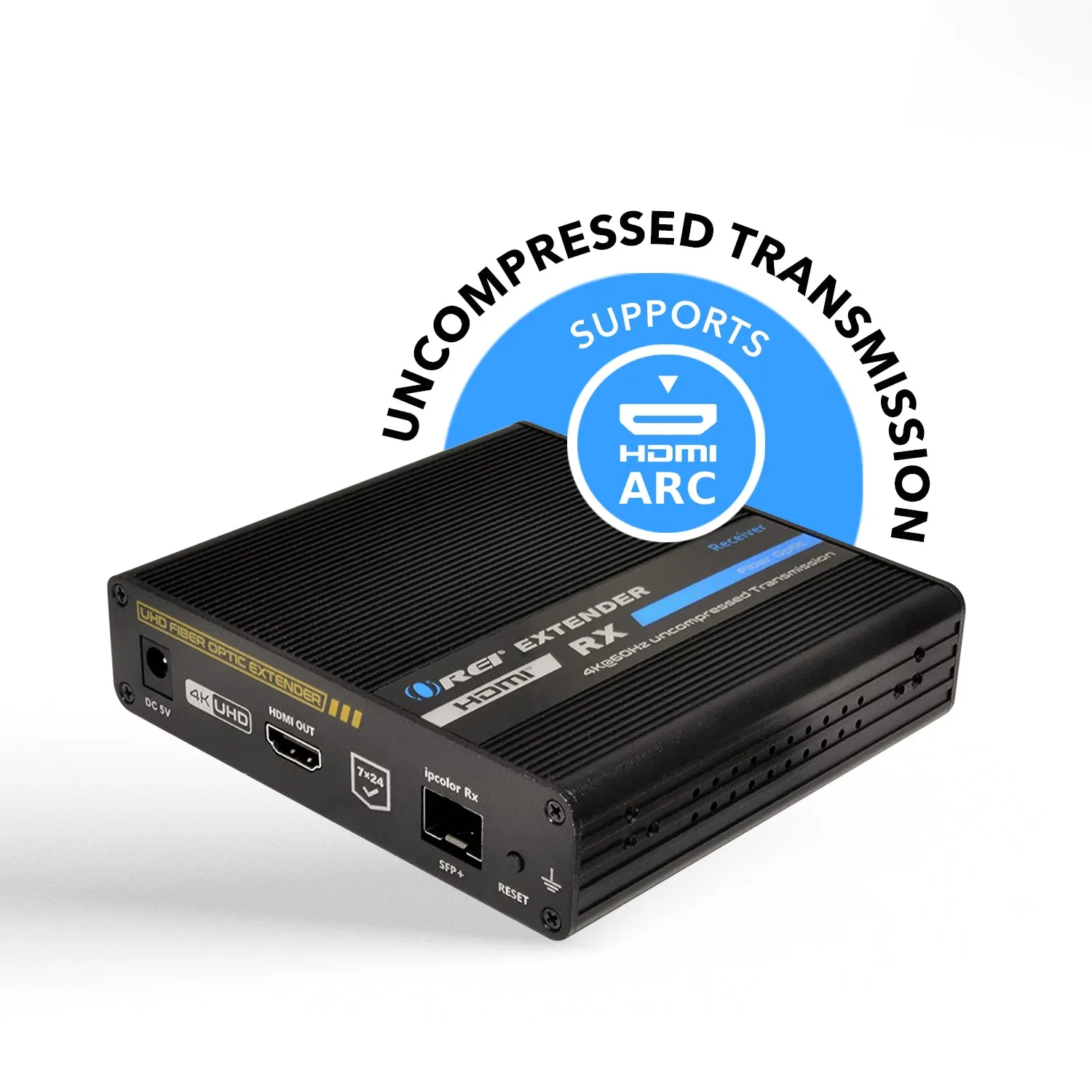

- The receiver can output the source audio additionally through the S/PDIF port

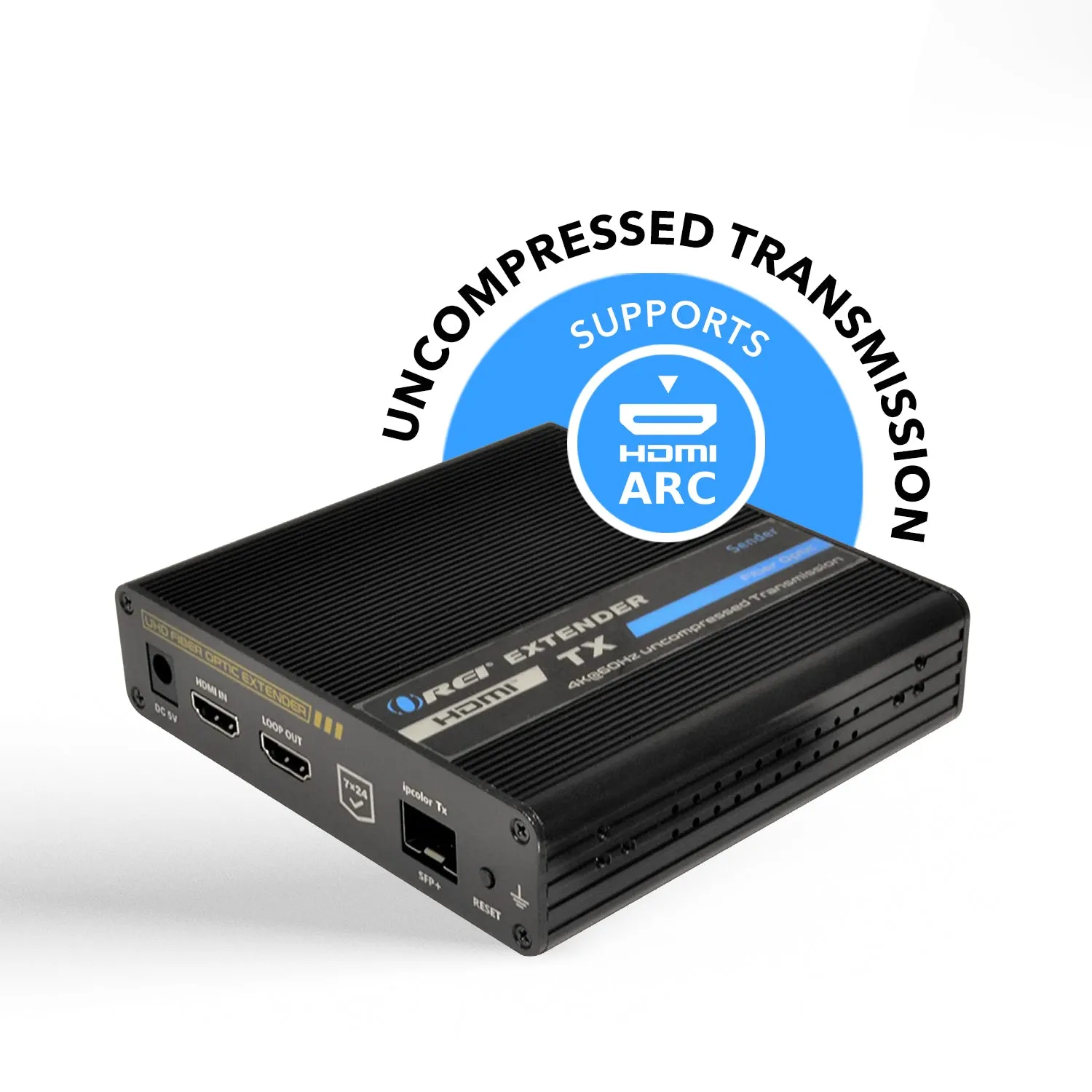

- Has HDMI loop out port on the transmitter
- 24/7 reliable
- Lightning Protection, Surge Protection, ESD Protection
- This unit requires only one power adapter to work
Description:
UHD-F040 is an HDMI optical fiber extender which adopts a new transmission technology that supports zero-latency & uncompressed transmission of the video signals. The HDMI 4K@60Hz signals can be extended to 40kms through the single mode fiber cable.

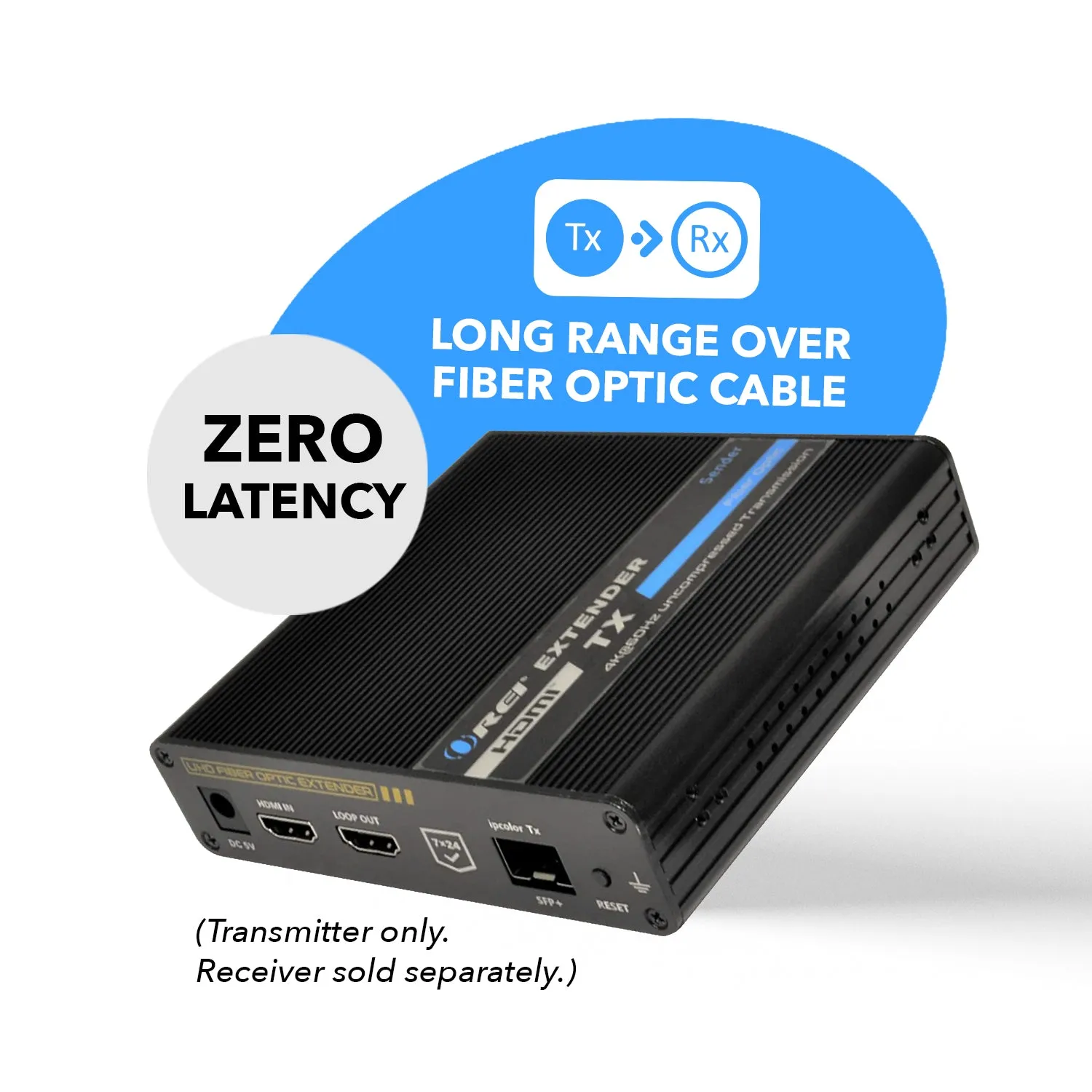

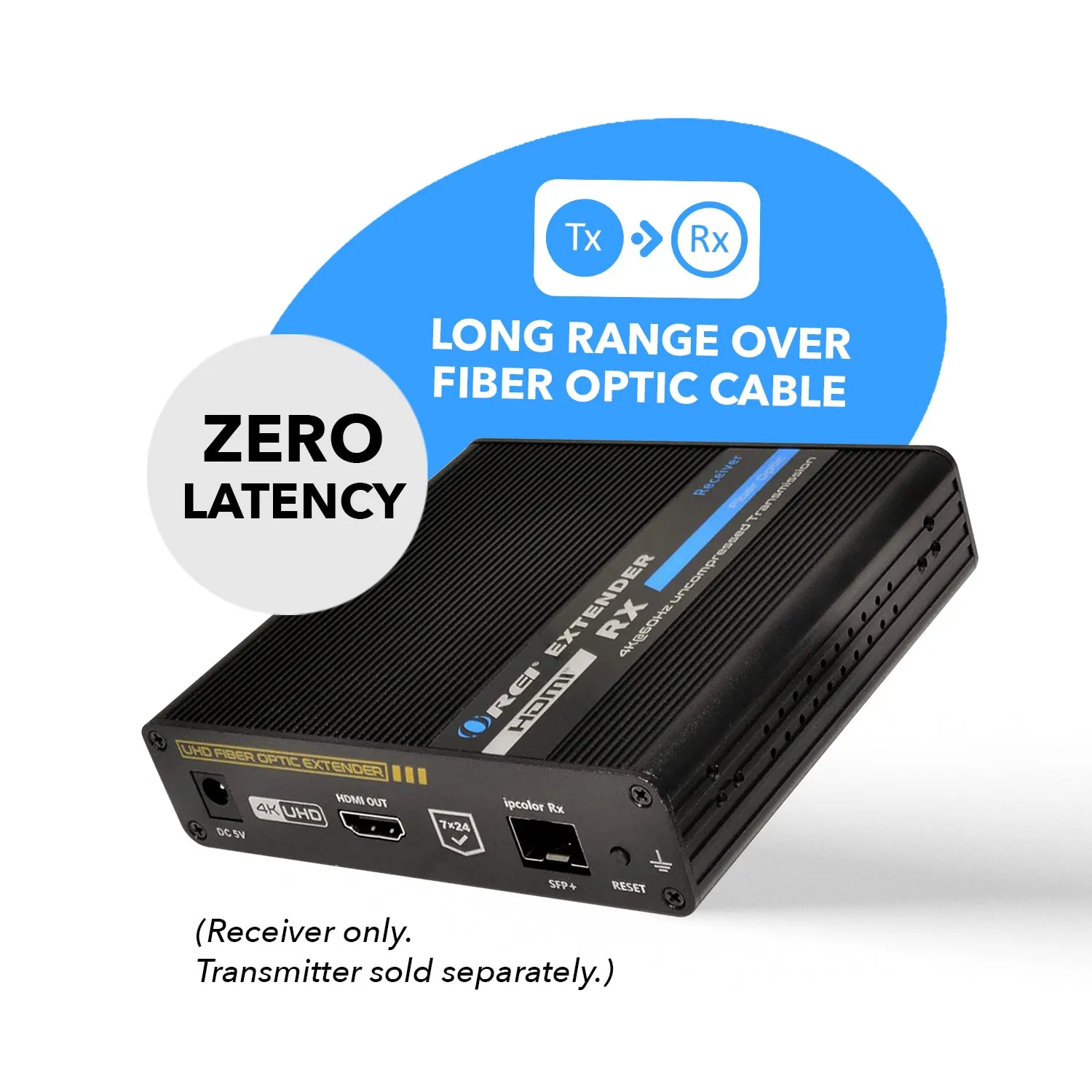

Provides Long Range Over Fiber Optic Cable with Zero Latency, lossless and lag-free video transmission. Supports switch cascading.
The transmitter supports HDMI loop out, bi-directional IR, RS-232, HDMI ARC, CEC and other functions. It also supports one to one connection, one to many connections through the switch and switch cascading. It is widely used in security monitoring, rail transit, broadcasting & is a Perfect professional Commercial distribution solution.
[shortdes]
- Maximum transmission distance is 40km while using single mode fiber cable
- Supports Bi-Directional IR, HDMI ARC, CEC, RS-232 (Transmitter & Receivers sold separately)
- Lightning Protection, Surge Protection, ESD Protection
AUDIO AND VIDEO

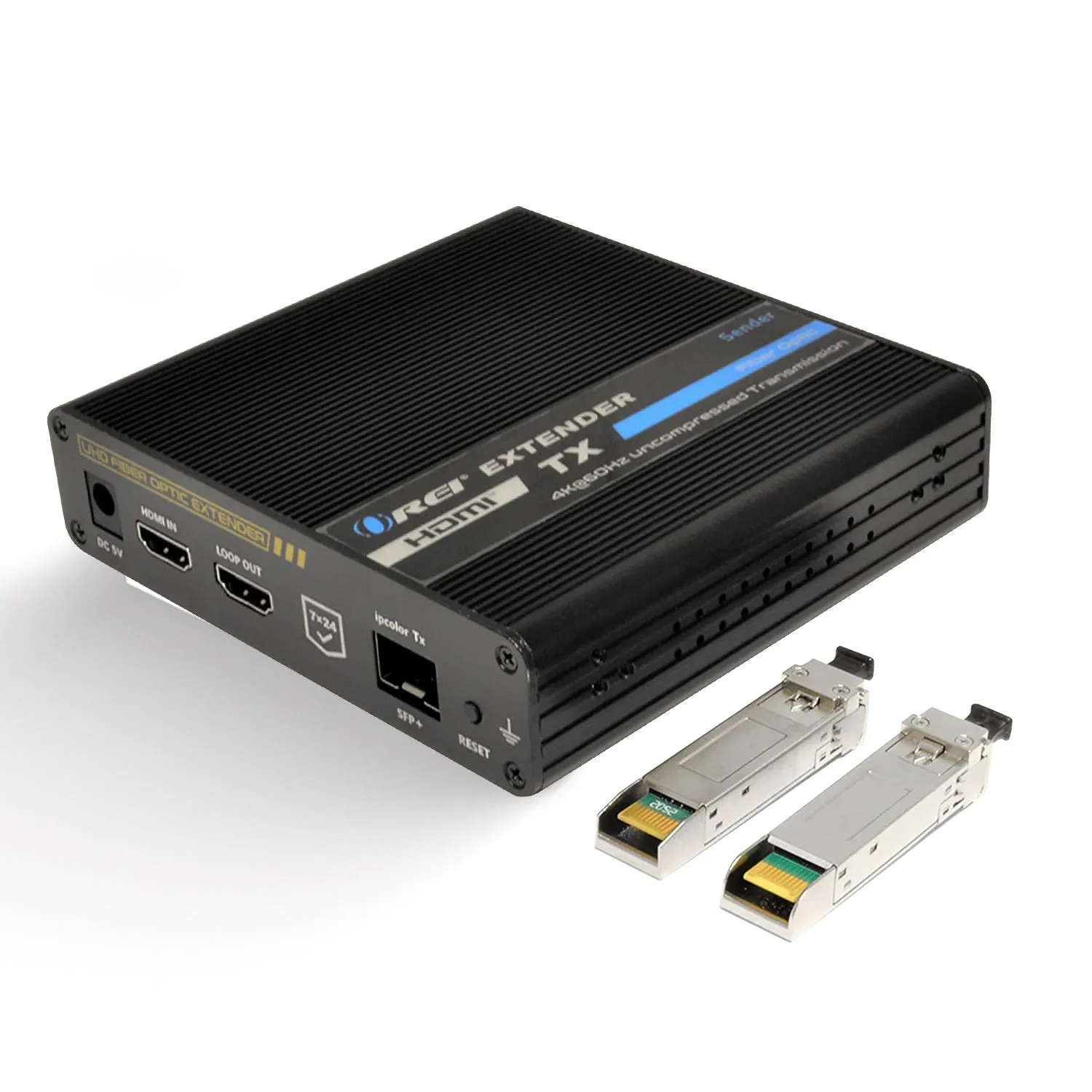

| Transmitter: | INPUT PORTS: | 1x HDMI Input |
| 1x IR IN | ||
| OUTPUT PORTS: | 1x HDMI Output | |
| 1x Single/Multi Mode | ||
| 1x IR Out | ||

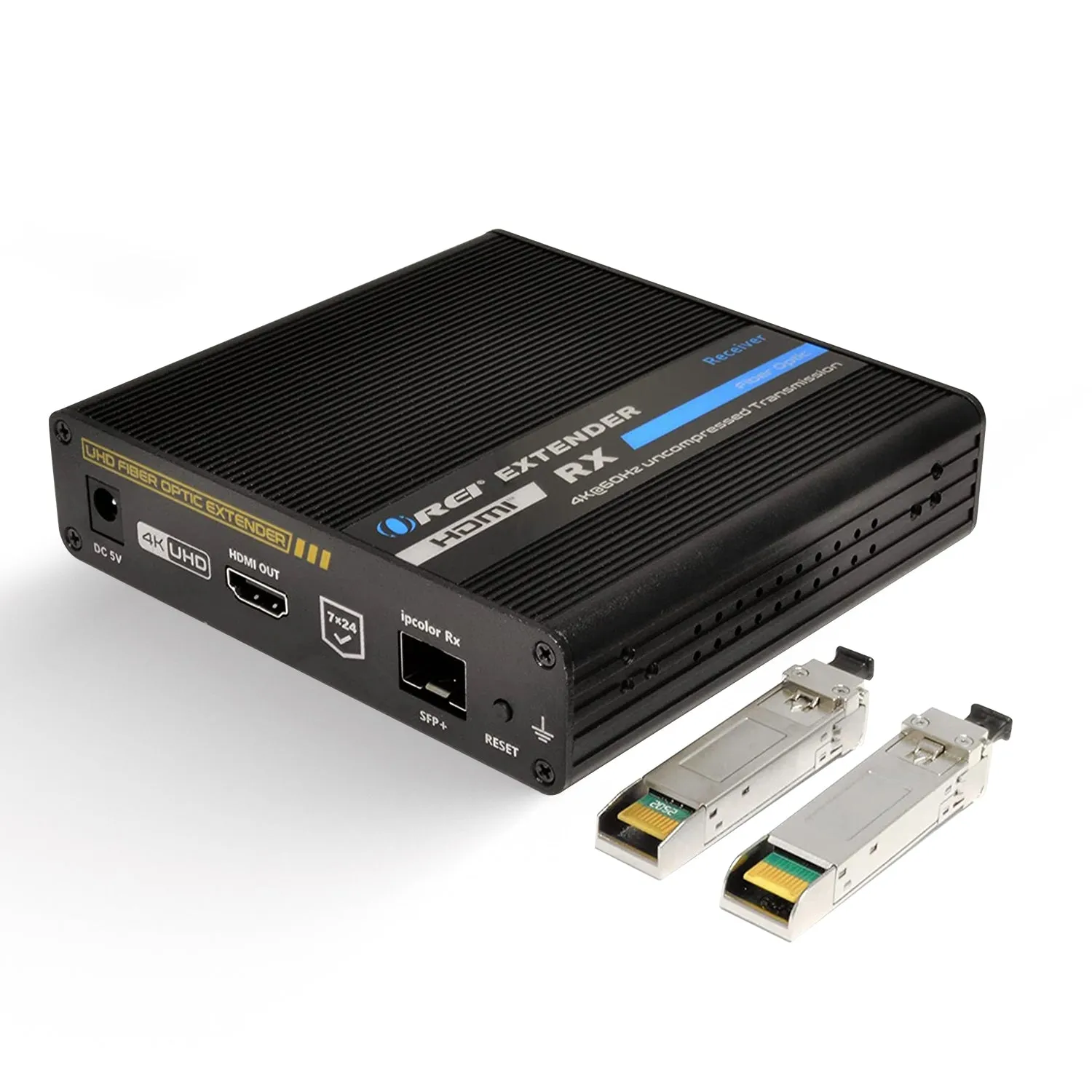

| Receiver: | INPUT PORTS: | 1x IR IN |
| 1x Single/Multi Mode | ||
| OUTPUT PORTS: | 1x HDMI Out | |
| 1x IR Out |
COMPLIANCES
| HDMI Compliance: | HDMI 2.0 |
| HDCP Compliance: | HDCP 2.2 |
| Transmission protocol: | Ipcolor |
| Latency: | Zero latency |
| Optical Module Type: | SFP |
| Fiber Optic Cable Type: | Single mode fiber (Use with the default optical modules) |
| SFP optical fiber module wavelength: | 1270nm/1330nm |
EXTENDING DISTANCE
| 4K@60Hz: | Up to 40 Km |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: | Yes |
| ARC Function: | Yes |
| USB KVM Function: | No |
| PoC/PoE Function: | No |
| IR Controller: | Bi-directional IR |
| Downscaler Function: | No |
| Over Network/IP Function: | Yes |
| HDBaseT Function: | No |
| RS-232 Function: | Yes |
AUDIO OUTPUT
| HDMI Audio Formats: | LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital plus /Dolby TrueHD/Dolby Digital/Dolby Atmos |
DIMENSIONS & WEIGHT

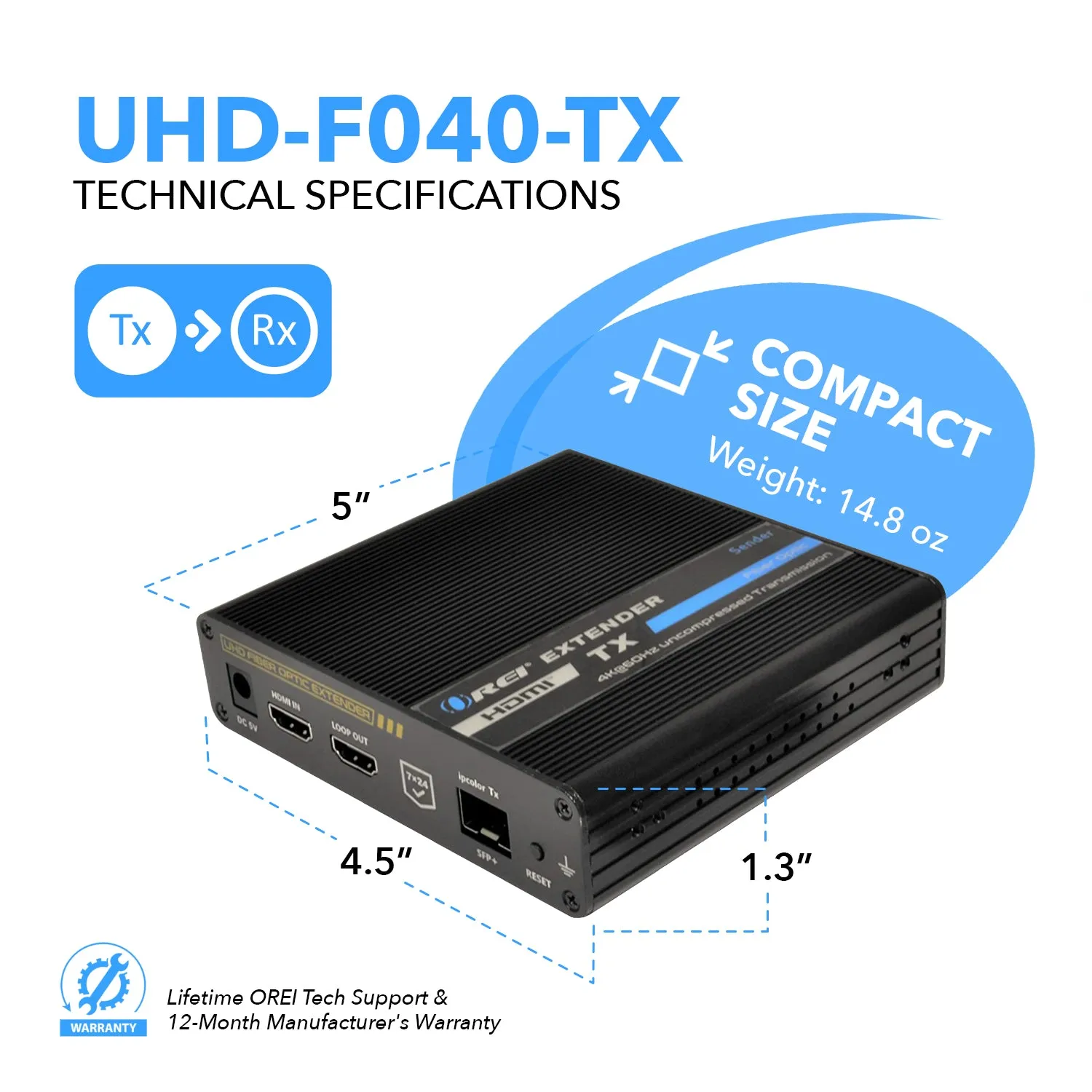

| Transmitter: | Height: | 30mm |
| Width: | 115.20mm | |
| Depth: | 123.95mm | |
| Weight: | 420g | |

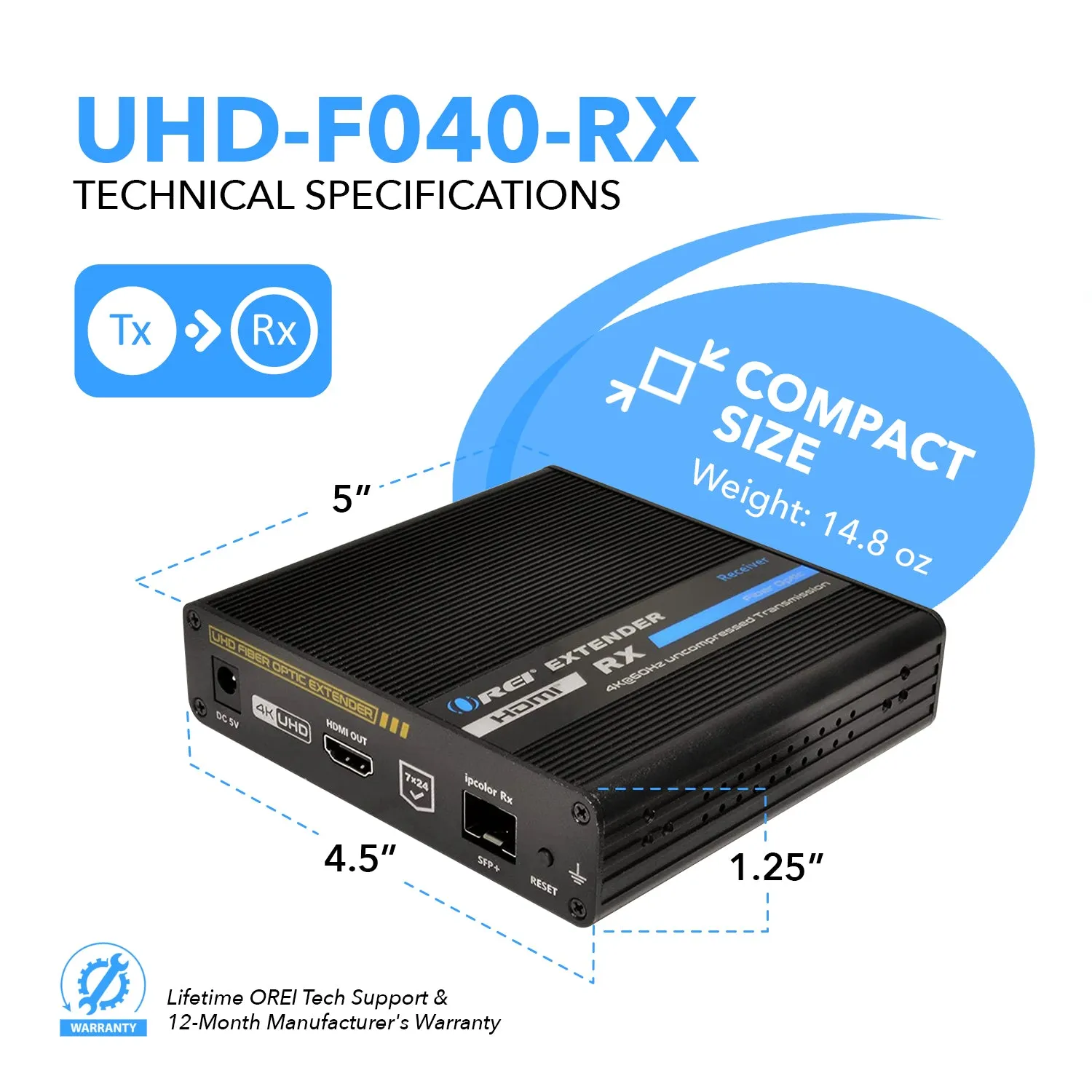

| Receiver: | Height: | 30mm |
| Width: | 115.20mm | |
| Depth: | 123.95mm | |
| Weight: | 420g |
PROTECTION
| Operation Temperature: | -20 ~ 60°C |
| Storage temperature: | -30 ~ 70°C |
| Relative Humidity: | 0 ~ 90% RH |
| ESD Protection: | 1a Contact discharge level 3 1b Air discharge level3 Implementation of the standard: IEC61000-4-2 |
| Light Protection: | Yes |
| Surge Protection: | Yes |
POWER
| Power Consumption (Max): | DC 5V/2A | ||||
| Power Supply (Max): | 7W |
PHYSICAL PROPERTIES
| Color: | Black |
| Material: | Aluminium Alloy Material Crystal Panel |
PACKAGE CONTENTS (Transmitter Only)
| 1x Transmitter |
| 1x DC5V/2A Power Adapter |
| 1x IR Blaster Extension Cable |
| 8x Mounting brackets |
| 1x SFP single mode optical module/ 1270nm LC |
| 1x SFP multi-mode optical module/ 850nm LC |
| 9x Screw |
| 1x Earthing screw |
| 1x User Manual |
PACKAGE CONTENTS (Receiver Only)
| 1x Receiver |
| 1x DC5V/2A Power Adapter |
| 1x IR Receiver Extension Cable |
| 8x Mounting brackets |
| 1x SFP single mode optical module/ 1330nm LC |
| 1x SFP multi-mode optical module/ 850nm LC |
| 9x Screw |
| 1x Earthing screw |
| 1x User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you can implement the daisy chain & switch cascading method.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 40 KM
