AGM Global Vision PVS-7 NL1

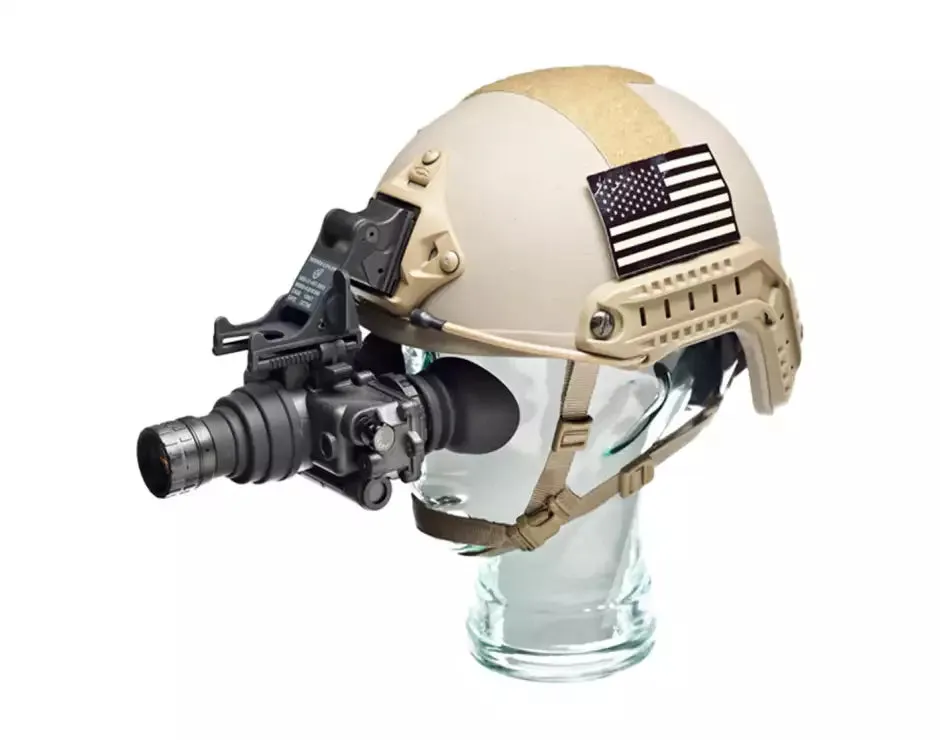

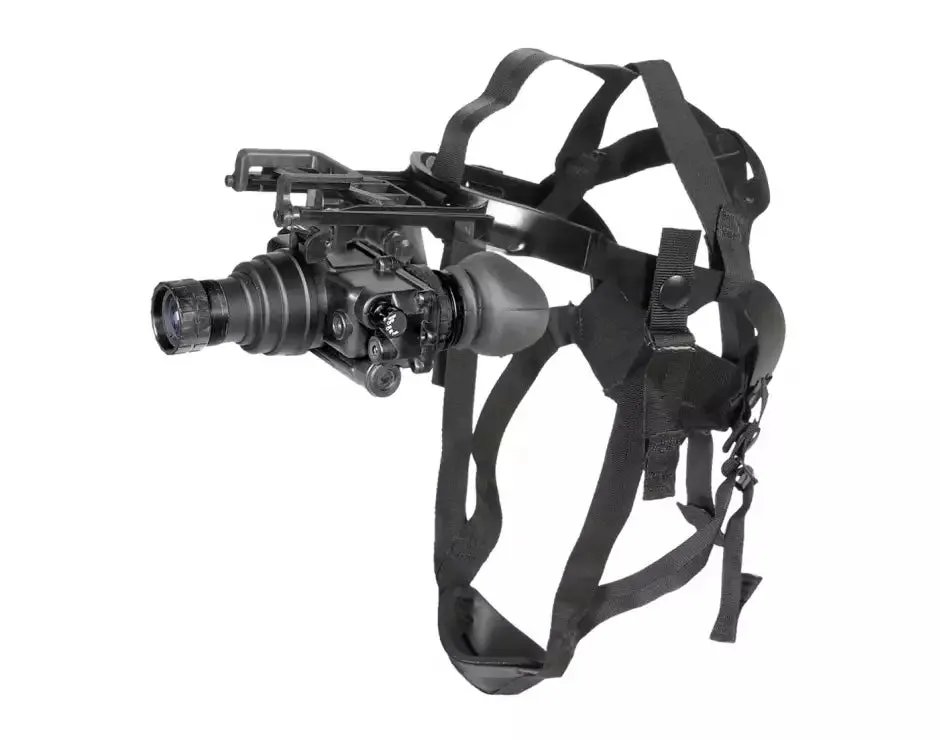

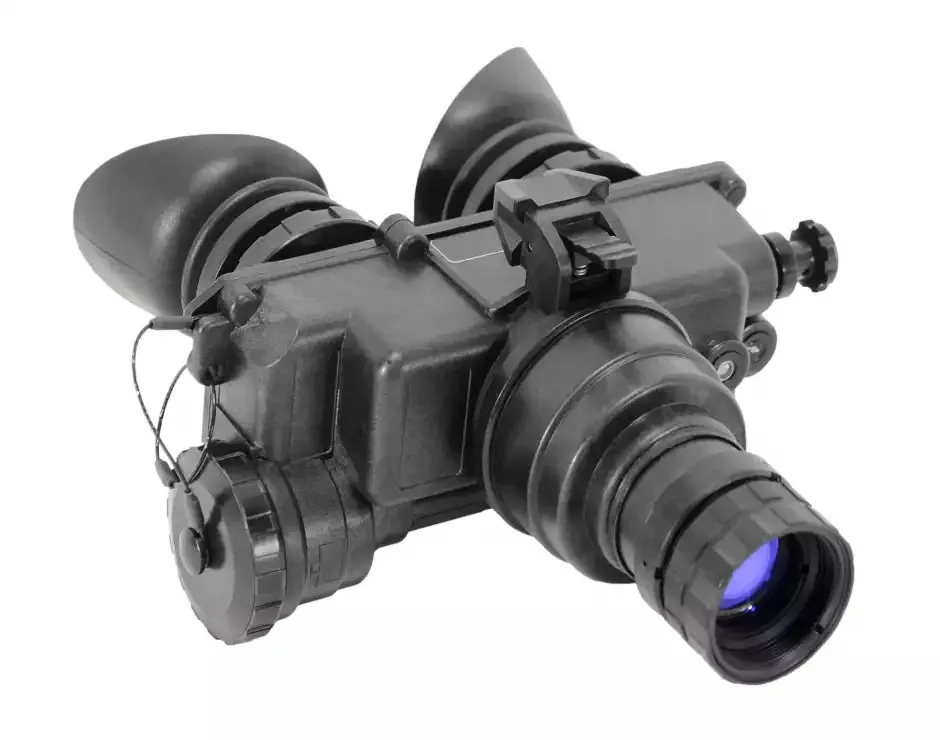

The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2 and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The PVS-7 is equipped with Automatic Brightness Control (ABC) to adjust image brightness in changing light conditions to maintain image definition and clarity. The builtin infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.

Features:

Compact, rugged design/ Waterproof
Head or helmet-mountable for hands-free operation
Ergonomic, simple, easy-to-operate controls
Built-in Infrared illuminator and flood lens
3-Year Warranty

Specifications:

Image Intensifier Tube: Gen 2 "Level 1"

Resolution: 51-64 lp/mm

Field of view cleanness by zone: Gen 2 IIT NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.

Magnification: 1x

Lens System: 27 mm; F/ 1.2

FOV: 40°

Focus Range: 0.2 m to infinity

Diopter Adjustment: -6 to 2 dpt

Led Indicators: Low battery; IR On; Excessive light conditions

Automatic Brightness Control: YES

Infrared Illuminator: YES

Bright Light Cut-Off: YES

Automatic Shut-Off System: YES

Battery Type: 2 AA Alkaline or 1 Lithium (BA-5567/ U)

Battery Life (Operating): Up to 60 hours at 20°C

Operating Temperature Range: -40°C to 50°C (-40°F to 122°F)

Storage Temperature Range: -50°C to 70°C (-58°F to 158°F)

Weight: 0.68 kg (1.5 lbs)

Overall Dimensions: 162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)

Package Includes: Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual
