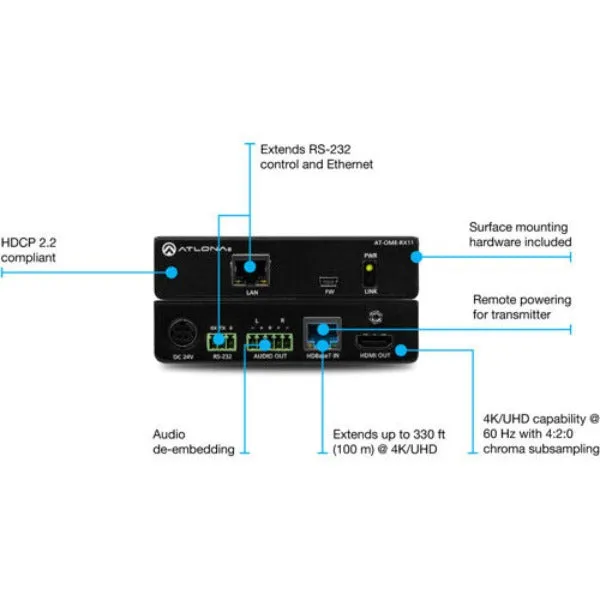

The Atlona AT-OME-RX11 is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX11 is HDCP 2.2 compliant and receives RS-232 and IP control signals. Additionally, this receiver features two-channel audio de-embedding to a balanced analog audio output. The OME-RX11 is locally powered, and can deliver Power over Ethernet (PoE) over HDBaseT to an Atlona Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter.

Specifications

• Video
• HDMI: 2.0
• HDCP: 2.2
• UHD/HD/SD: 4096x2160@60/50/30/25/24Hz, 3840x2160@60/50/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/24/23.98Hz, 1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz
• VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
• Color Space: YUV, RGB
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit

  Audio
• HDMI Pass-Through Formats: PCM 2.0, LPCM: 5.1, LPCM: 7.1, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS®, Digital Surround™, DTS-HD Master Audio™, DTS:X®
• Bit Rate: 24 Mbits/s max

  Analog Audio
• Format: Stereo 2-Channel
• Output level: L: 5.883 Vrms R: 5.855 Vrms
• Frequency Response: 20 Hz to 20 kHz
• THD N: < 0.00009% at 20 Hz to 20 kHz
• SNR: > 141.49 dB at 1 kHz
• Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

  Control
• RS-232: 2-way device control and monitoring; Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
• CEC Support: Yes
• Resolution/Distance: 4K/UHD / 1080p
• HDMI IN/OUT: 15' 5m / 30' 10m
• CAT5e: 295' 90m / 330' 100m
• CAT6/6a/7: 330' 100m / 330' 100m

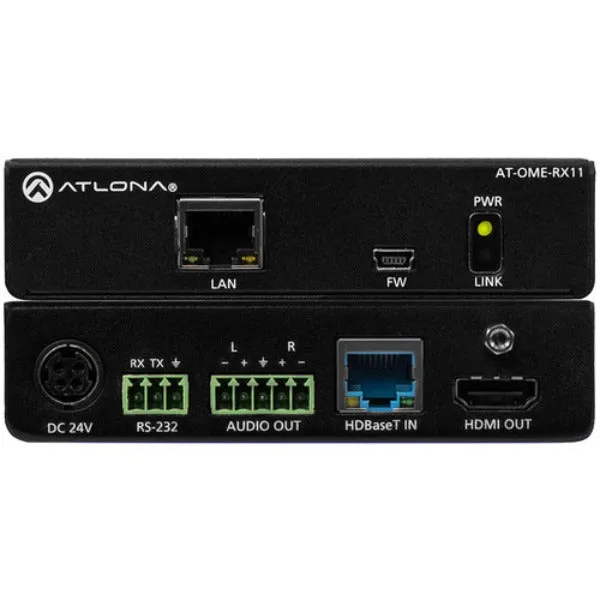

  Connectors, Controls, and Indicators
• HDBaseT IN: (1) RJ45, female
• HDMI OUT: (1) Type A, 19-pin female
• AUDIO OU: (1) 5-pin captive screw, balanced / unbalanced 2-channel
• RS-232: (1) 3-pin captive screw (bidirectional)
• LAN: (1) RJ45, 100Base-T
• FW: (1) Mini-USB, 5-pin female
• DC 24V: (1) 4-pin, mini-DIN locking connector
• PWR indicator: (1) LED, green
• LINK indicator: (1) LED, yellow
• Operating Temp: 32° to 122°F (0° to 50°C)
• Storage Temp: -4° to 140°F (-20° to 60°C)
• Humidity (RH): 20% to 60%, non-condensing
• Power:
  Consumption: 15.12 W
  Supply Input: 100 - 240 VAC, 50/60 Hz
  Output: DC 24 V / 2.7 A
• Dimensions (HxWxD): 1.02 x 4.29 x 5.24" (26 x 109 x 133mm)
• Weight: 0.90Lbs (0.41kg)
