| Product Attribute | Attribute Value |
|---|---|
| Number of Channels | 20 |
| Power Rating | 2.4 W |
| Series | |
| Type | Multiplexer |
Overview

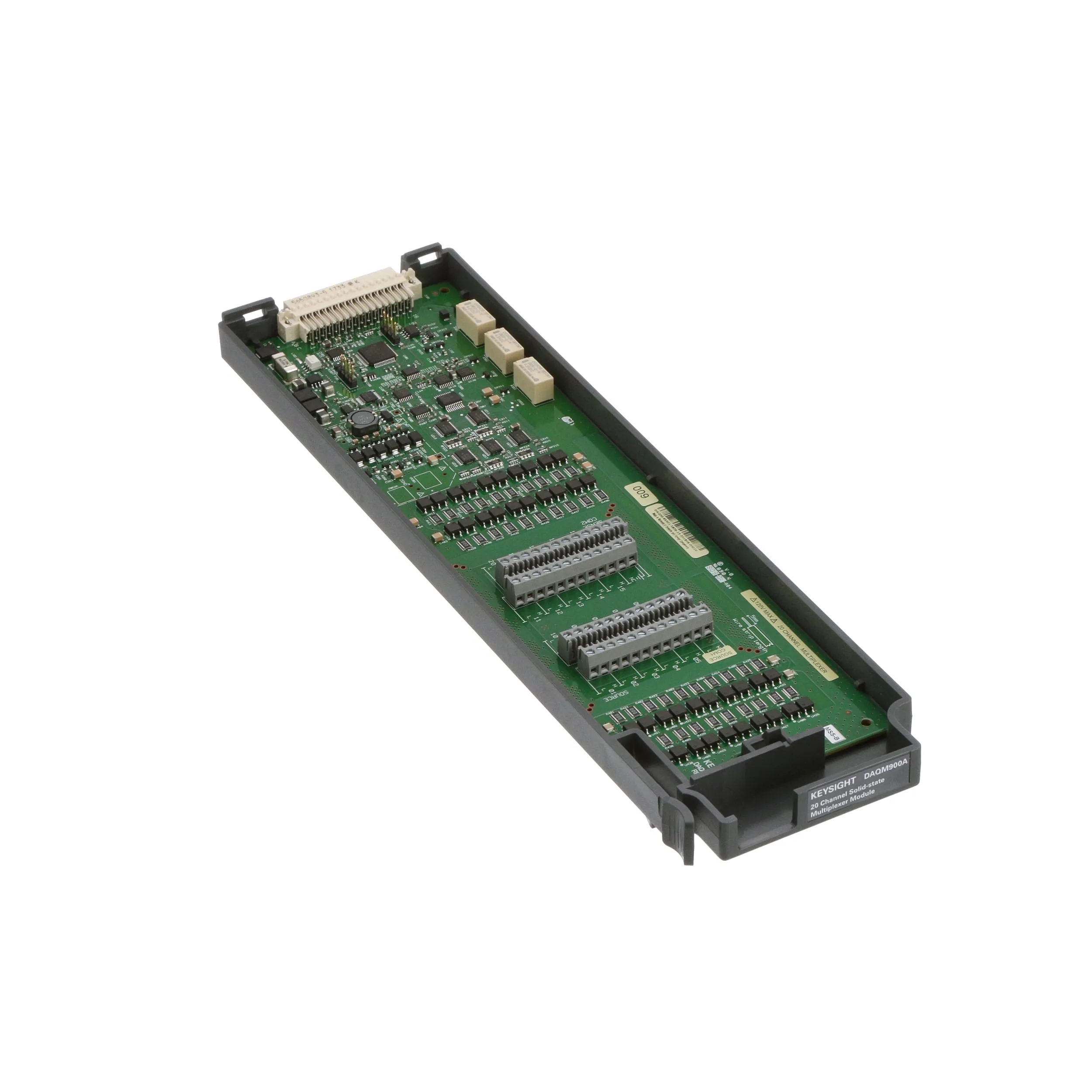

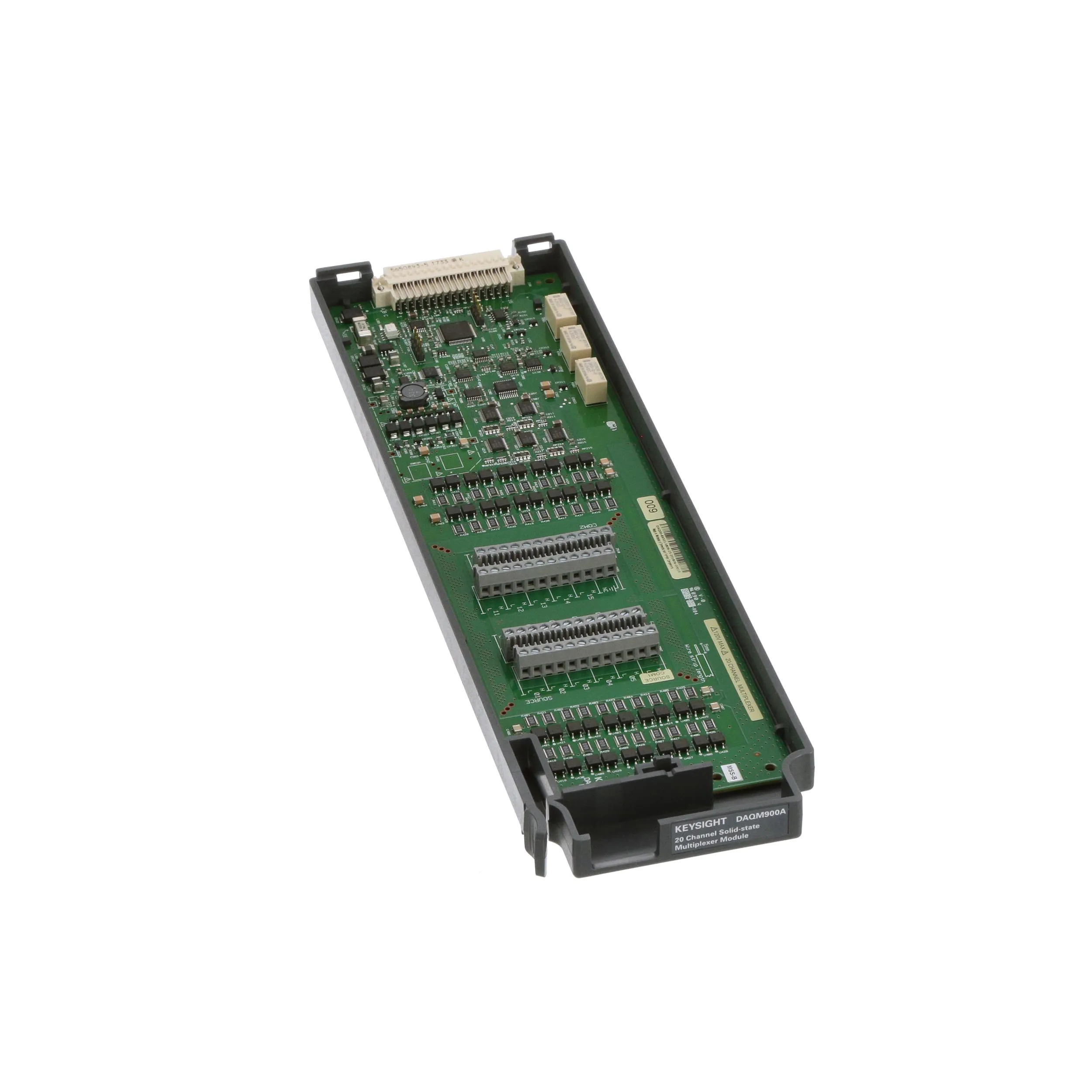

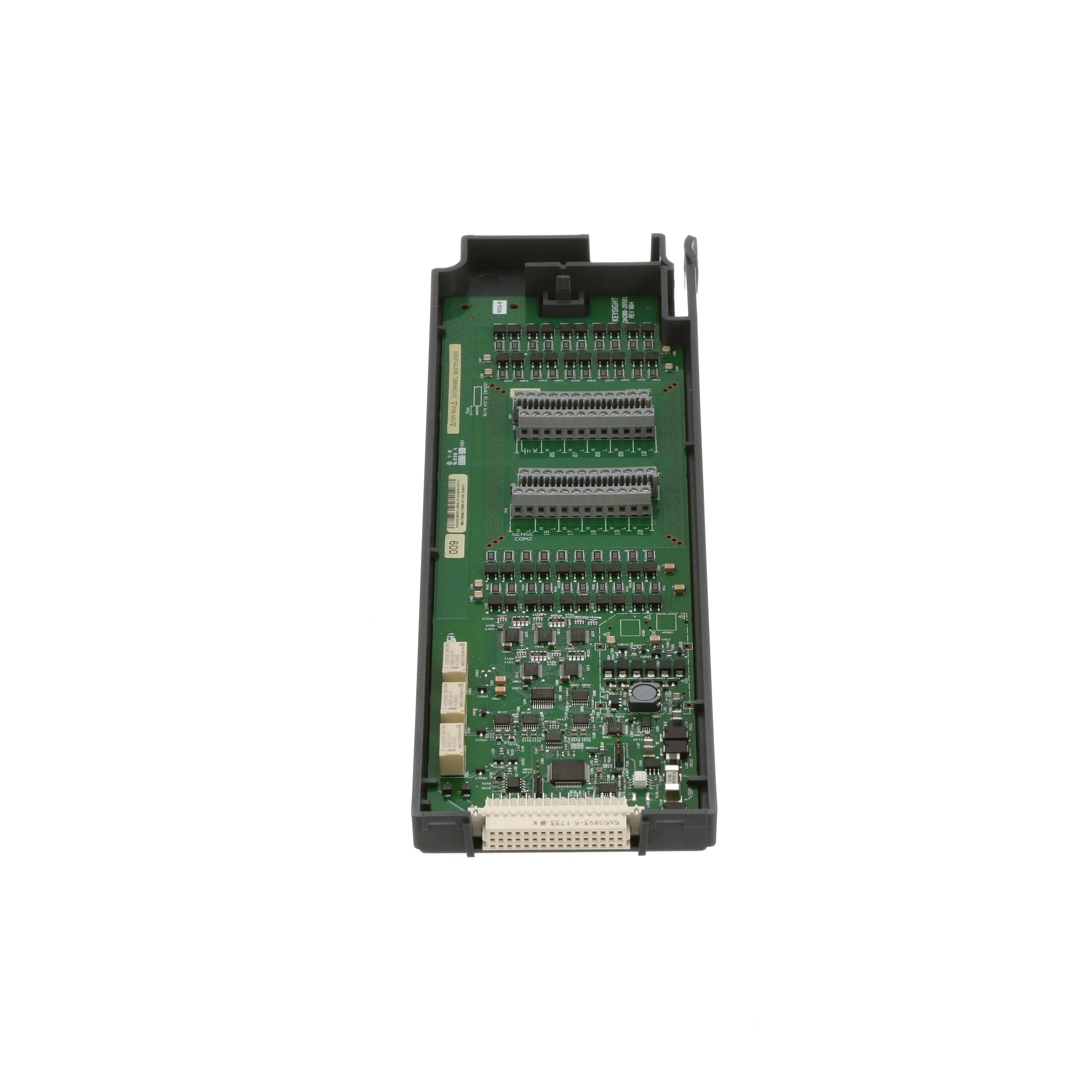

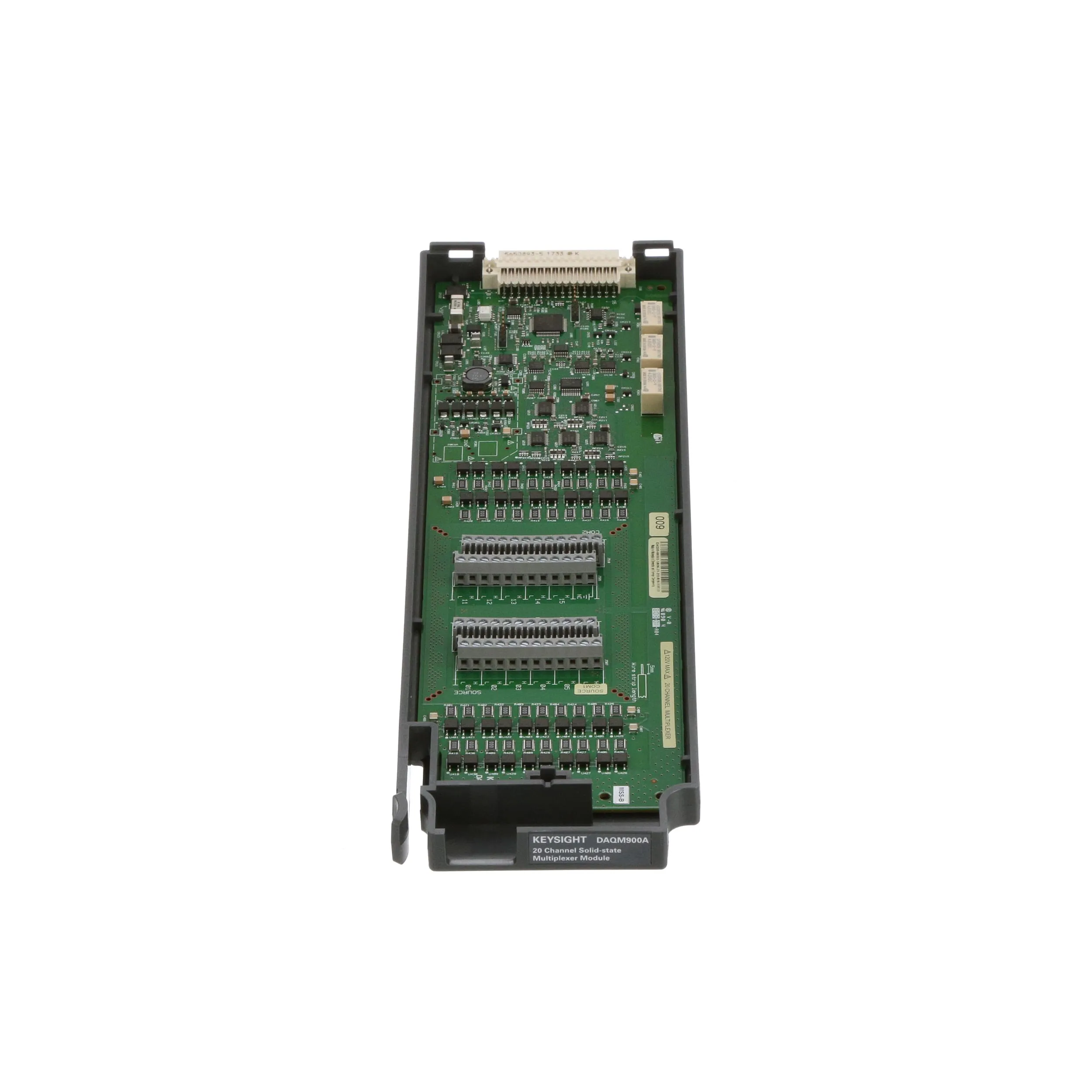

Keysight DAQ970A Series — 20 Channel Solid-state Multiplexer Module for DAQ970A Data Acquisition/System:
The series resistance of the DAQM900A limits the use of the 100 ohm and 1kohm resistance range. The precision of 2 W ohms is limited by this on resistance. Keysight recommends the use of 4-wire ohms for these 2 ranges. Maximum resistance range of DAQM900A is 1 Mohm The 10M ohm and above ranges are not specified on this module.
The Keysight DAQ970A is easy to use for a multitude of data logging and monitoring applications, either stand-alone or with a computer. Its flexible, modular design makes it scalable from 20 to 120 channels, and lets you add actuator, digital I/O, and analog output channels for simple control. Its small size, ruggedized features and USB memory port on the DAQ970A make it perfect for portable applications. Use LAN and USB interfaces for simple connection to the PC and support of remote applications. The DAQ970A can be set up at remote locations and accessed through the Web interface on a network connection or through the USB port by copying instrument configurations and measurement data results to a USB flash drive.
This Module:
Standard Product Includes:
DAQ970A measures and converts 12 different input signals:
System Features:
