| Product Attribute | Attribute Value |
|---|---|
| Maximum Current | 1 A |
| Maximum Supply Voltage | 300 V |
| Number of Channels | 40 |
| Power Rating | 50 W |
| Series | |
| Type | Multiplexer |
Overview

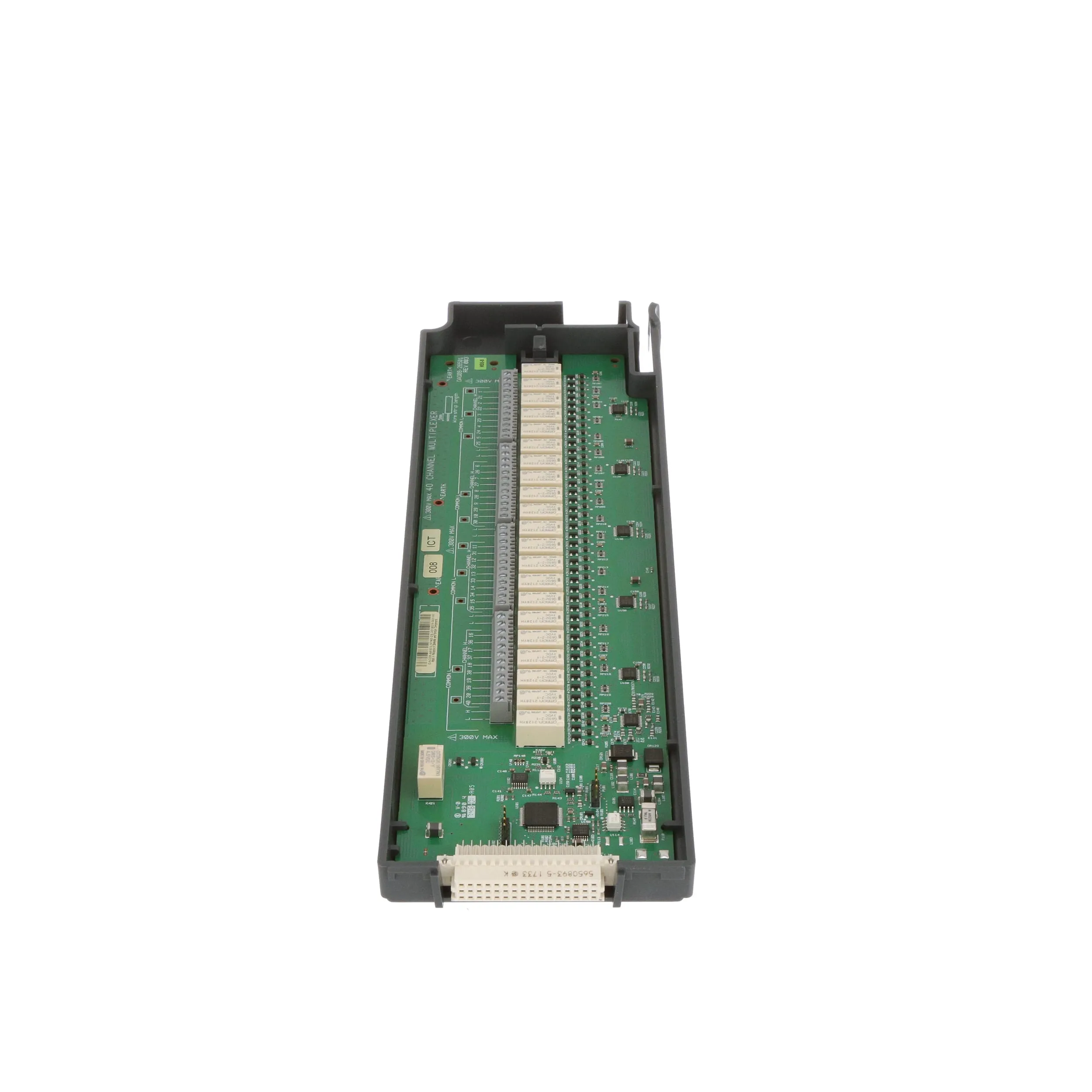

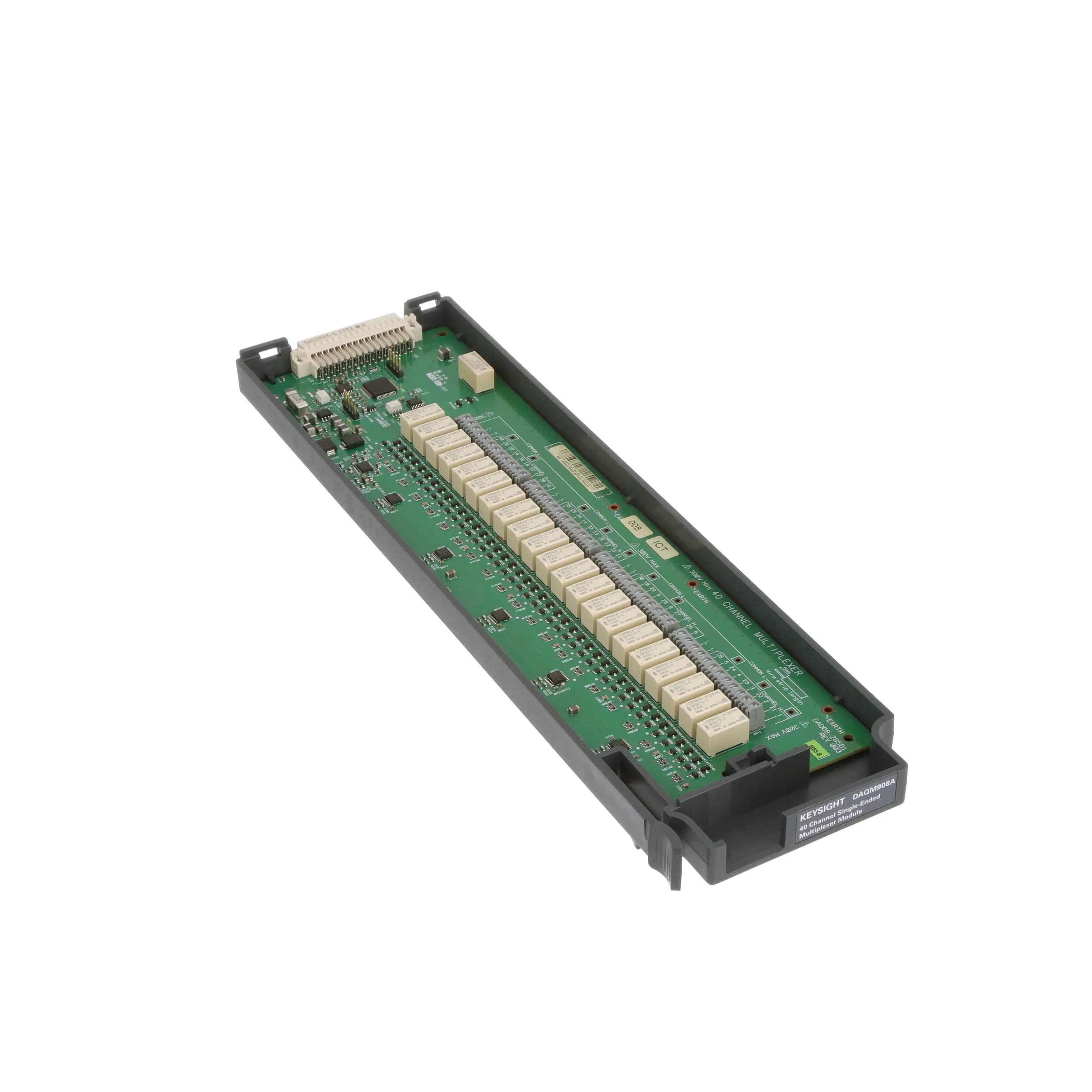

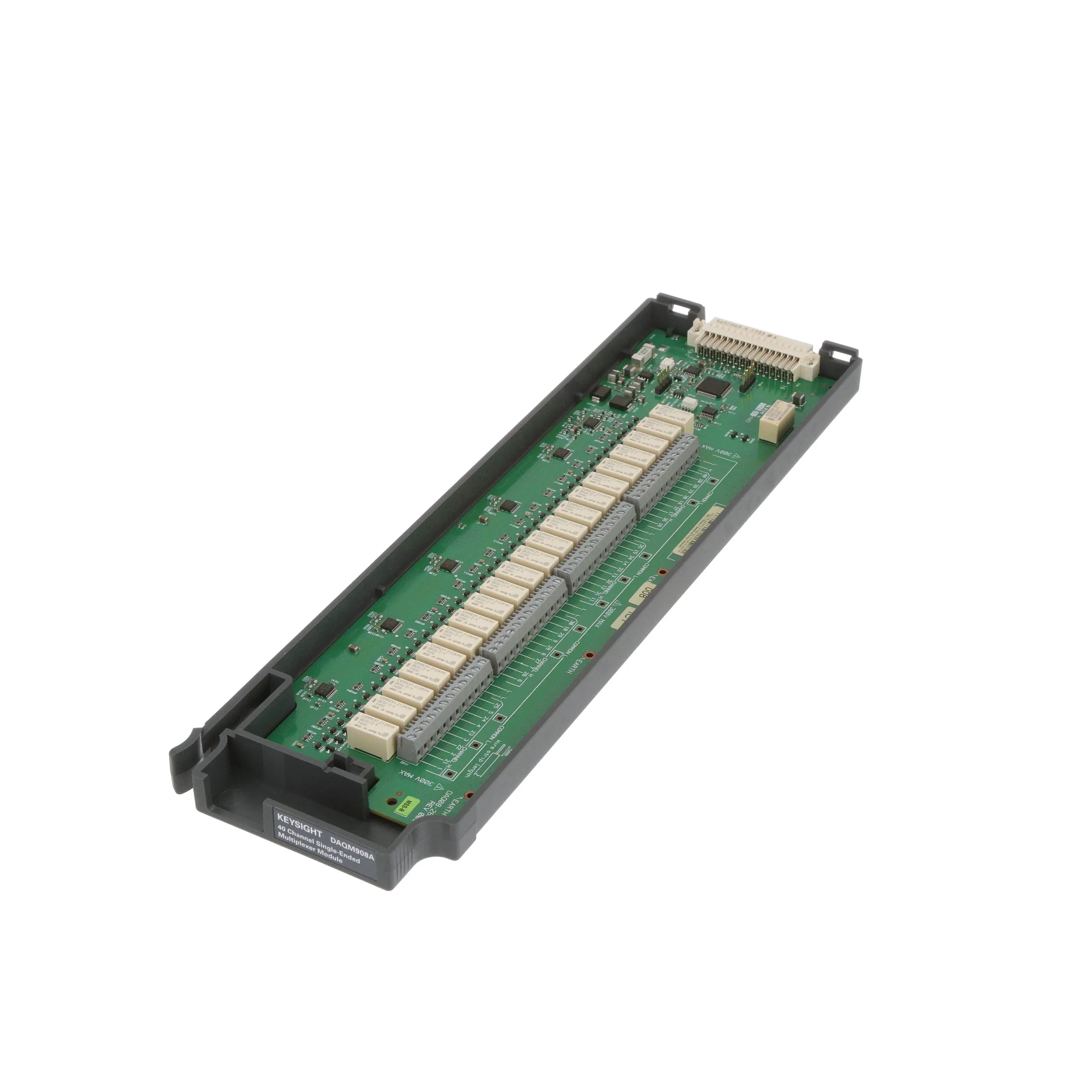

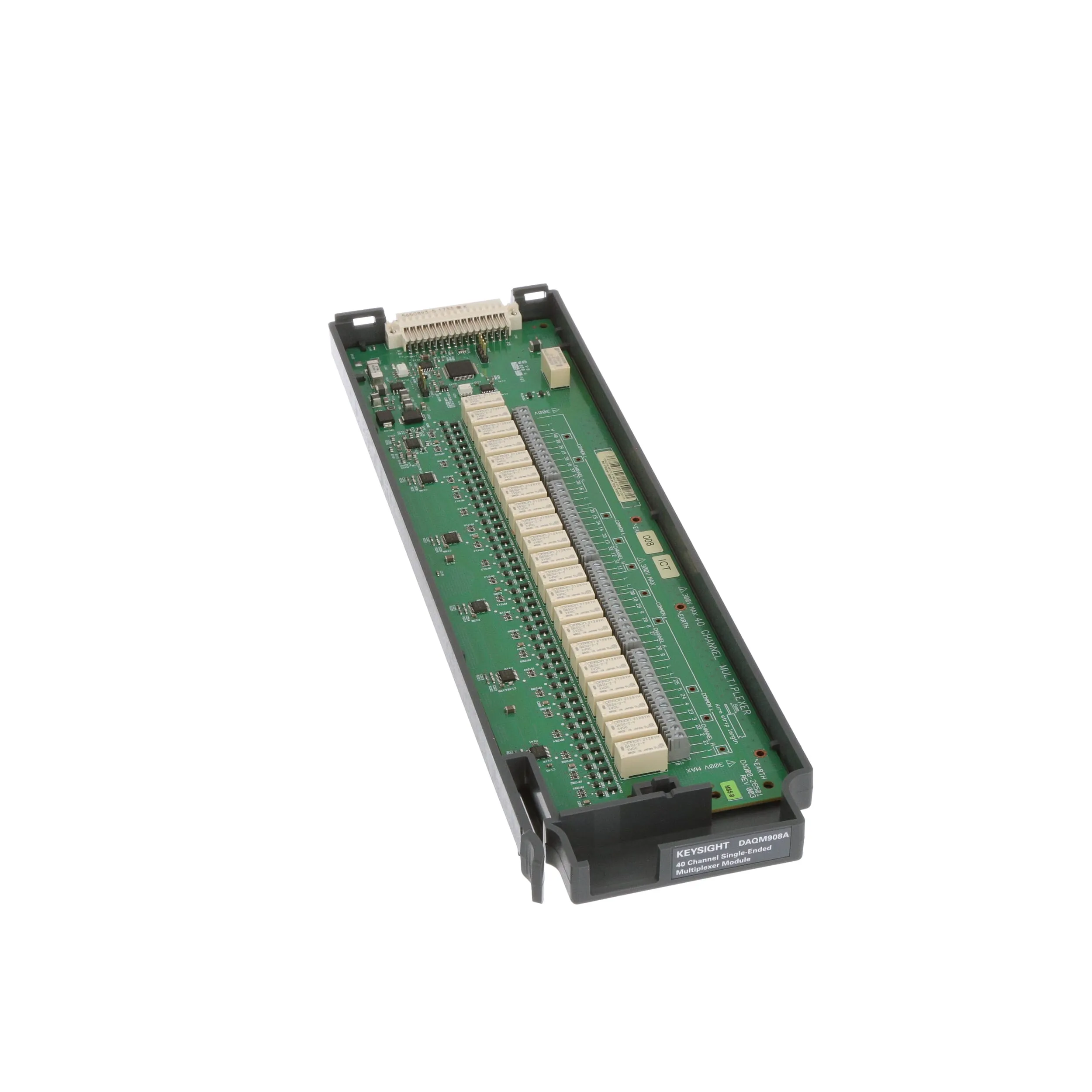

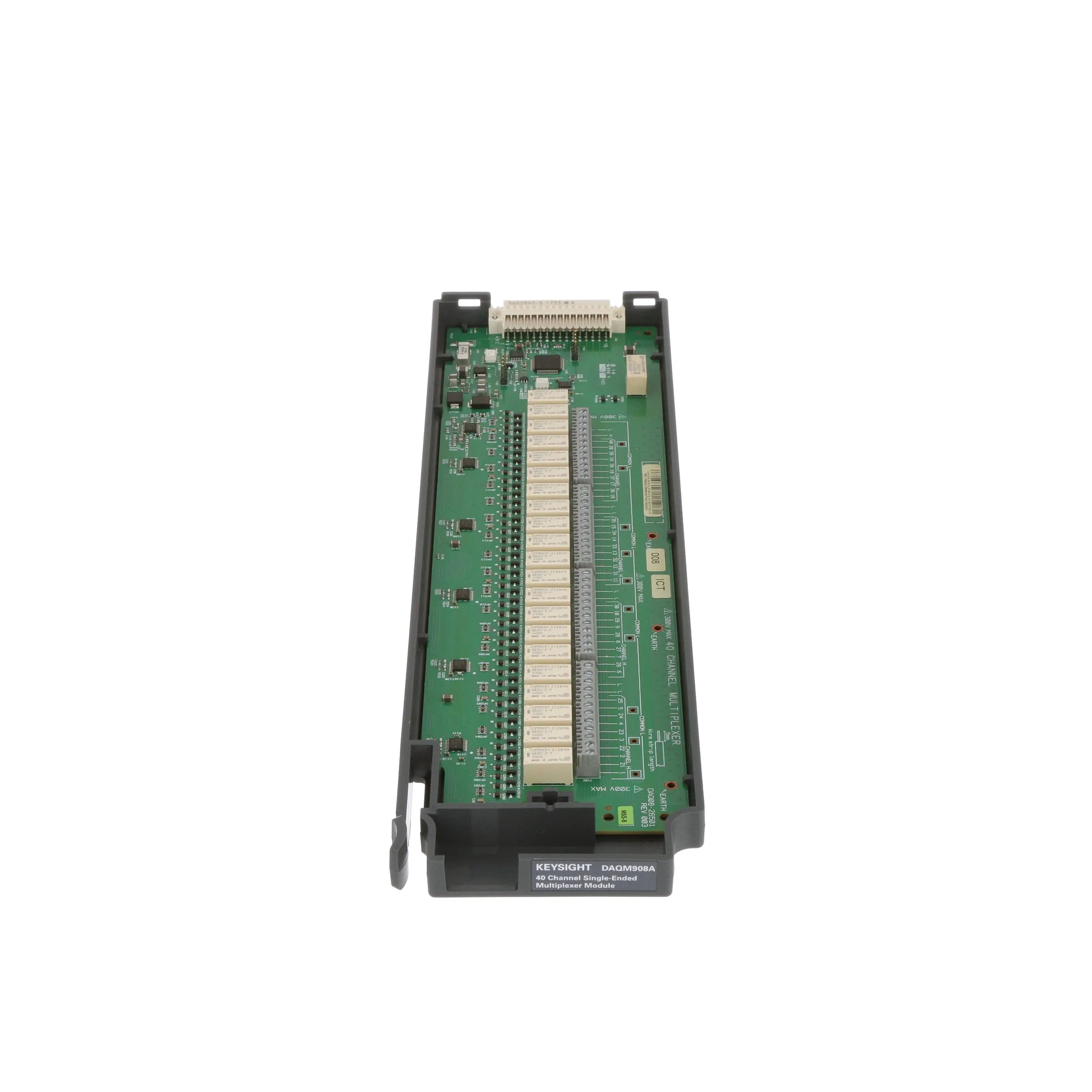

Keysight DAQ970A Series — DAQM908A 40 Channel Single-Ended Multiplexer Module for DAQ970A:
Use the Keysight DAQM908A module for the DAQ970A Data Acquisition System for the greatest density in common-low applications, such as battery test, component characterization, and benchtop testing. Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. Use only 2-wire RTD and Thermistor sensors for temperature measurements wit this module. The module low connection is isolated from earth and can float up to 300 V.
Standard Product Includes:
— 1 DAQM908A, 40-Channel Single-Ended Multiplexer Module
— 1 Certificate of Calibration
The Keysight DAQ970A is easy to use for a multitude of data logging and monitoring applications, either stand-alone or with a computer. Its flexible, modular design makes it scalable from 20 to 120 channels, and lets you add actuator, digital I/O, and analog output channels for simple control. Its small size, ruggedized features and USB memory port on the DAQ970A make it perfect for portable applications. Use LAN and USB interfaces for simple connection to the PC and support of remote applications. The DAQ970A can be set up at remote locations and accessed through the Web interface on a network connection or through the USB port by copying instrument configurations and measurement data results to a USB flash drive.
Whether you need to measure temperature, ac/dc volts, resistance, frequency, or current, the DAQ970A can handle it. The internal autoranging DMM directly measures 12 different functions, eliminating the need for expensive external signal conditioning. And our unique design allows complete per channel configurability for maximum flexibility and quick, easy set up. It’s like having an independent, high-performance DMM behind each channel. The DAQ970A has built-in Gigabit LAN and USB 2.0. With the standard LAN connections you also get the added benefit of a graphical Web interface for easy configuration of measurements and monitoring of results using a standard Web browser. The DAQ970A also features a built-in USB memory port so that you can use a USB flash drive to collect data without being connected to a PC. Data can be logged directly to the USB flash drive, extending your instrument’s memory, or copied from internal memory for transfer to a computer in another location.
This Module:
DAQ970A measures and converts 12 different input signals:
System Features:
