Features
- 2-port, 1-path Vector Network Analyzer (VNA)
- Frequency Range: 500 kHz to 4 GHz
- Frequency Accuracy: 2.5 ppm
- Frequency Resolution: 1 Hz
- Store more than 4000 traces and setups in memory
- Memory card slot for data storage and transfer
- 2 GB storage
- High resolution daylight viewable TFT color display
- Intuitive Graphical User Interface (GUI) with convenient Touch Screen
- VNA-quality error correction for directivity and source match
- Outstanding calibration stability
- User-defined overlays for viewing multiple S-Parameters
- Polar-format impedance display
- Arbitrary data points up to 4001
- IF Bandwidth selections of 10 Hz to 100 kHz
- 100 dB Transmission Dynamic Range
- 850 µs/data point sweep speed
- Exceptional RF immunity
- USB & Optional Ethernet for data transfer
- Distance Domain
- Internal Bias Tee option
- Vector Voltmeter option, ideal for cable phase matching
- High Accuracy Power Meter option
- GPS Receiver option
- Built-in editable Cable and Signal Standard List
- Portable 7.6 lbs (3.5 kg)

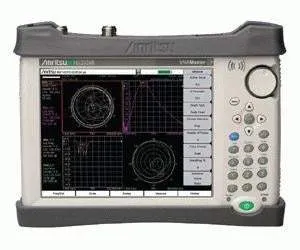

Anritsu introduces the most affordable, yet comprehensive solution, the MS2024B VNA Master (500 kHz to 4 GHz). It is a Vector Network Analyzer, it is a Power Meter and it is a Vector Voltmeter. It is tempting to think of the VNA Master as the "Swiss Army Knife of S-Parameters". But that would be wrong because while a Swiss Army Knife does many different functions, it does not do any one very well. Whereas the VNA Master does many measurements very well. Error-corrected VNA technology allows field analysis of S-parameters with benchtop accuracy. External power sensors measure transmit power accurately and the Vector Voltmeter option matches cable phase with great precision. Two other available models feature a built-in Spectrum Analyzer.
