Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Operator Interface |
| Application | Outdoor |
| Backlighting | 70,000 Hour Backlight |
| Depth | 2" (50.8mm) |
| Dimensions | 195.5 x 139.9 x 50.8 mm |
| Display Colors | Color |
| Display Resolution | 800 x 480 Pixels |
| Display Size | 7 Inch Display |
| Family Name | Graphite HMI Family |
| For Use With | Graphite Series |
| HMI Type | Touch Screen HMI |
| IP Rating | IP66 |
| Length | 7.697" (195.5mm) |
| Maximum Operating Temperature | 60 C |
| Minimum Operating Temperature | -20 C |
| Mounting Type | Chassis Mount |
| Number of Ports | 7 Port |
| Primary Type | Operator Interface |
| Resolution, Display | 640×480 Pixels |
| Series | |
| Special Features | Outdoor Readable ; Webserver |
| Supply Voltage | 24VDC |
| Technology | TFT LCD Display |
| Temperature Operating Range | -20 to 60 C |
| Type | Outdoor |
| Voltage Rating | 24 |
| Width | 5.508" (139.9mm) |
Overview

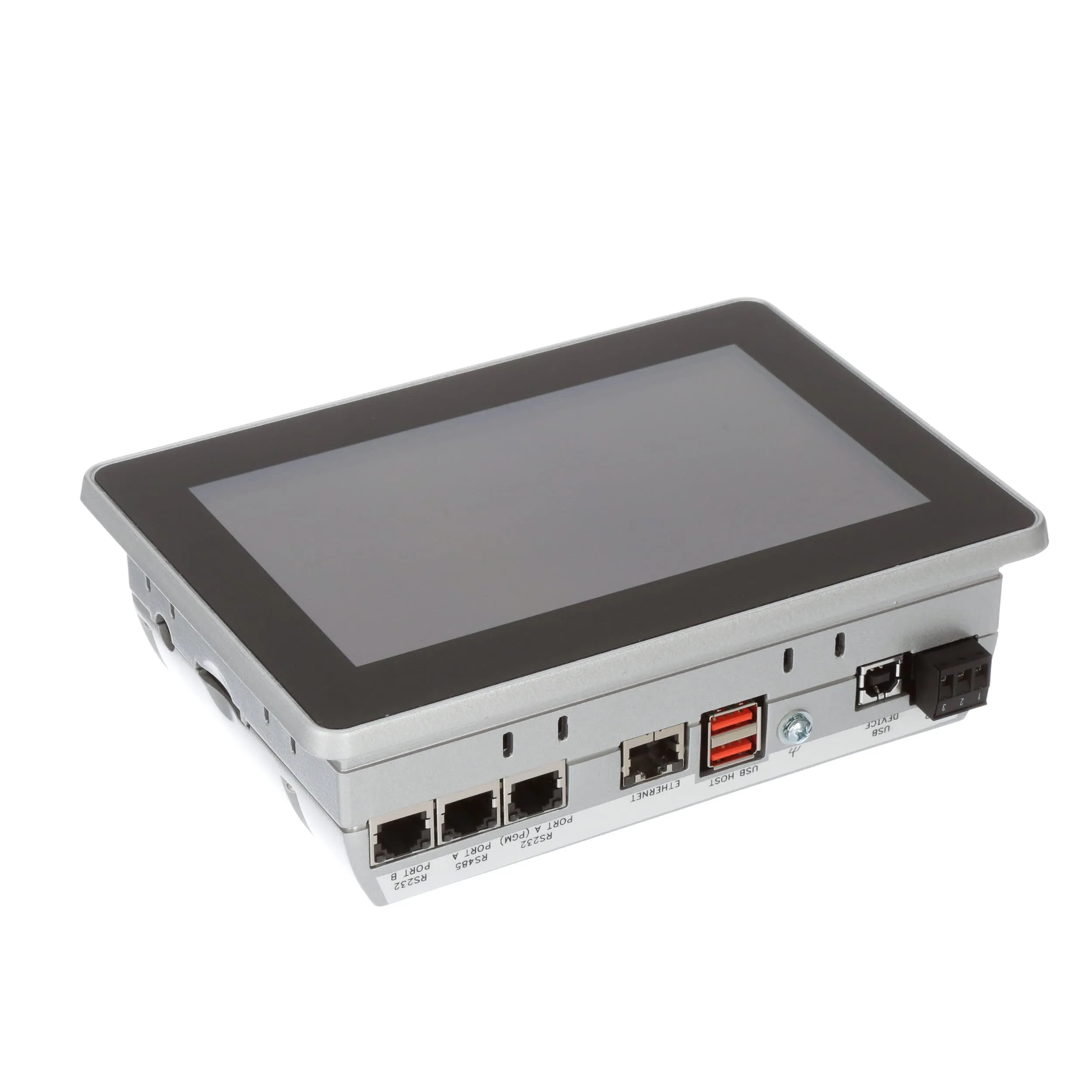

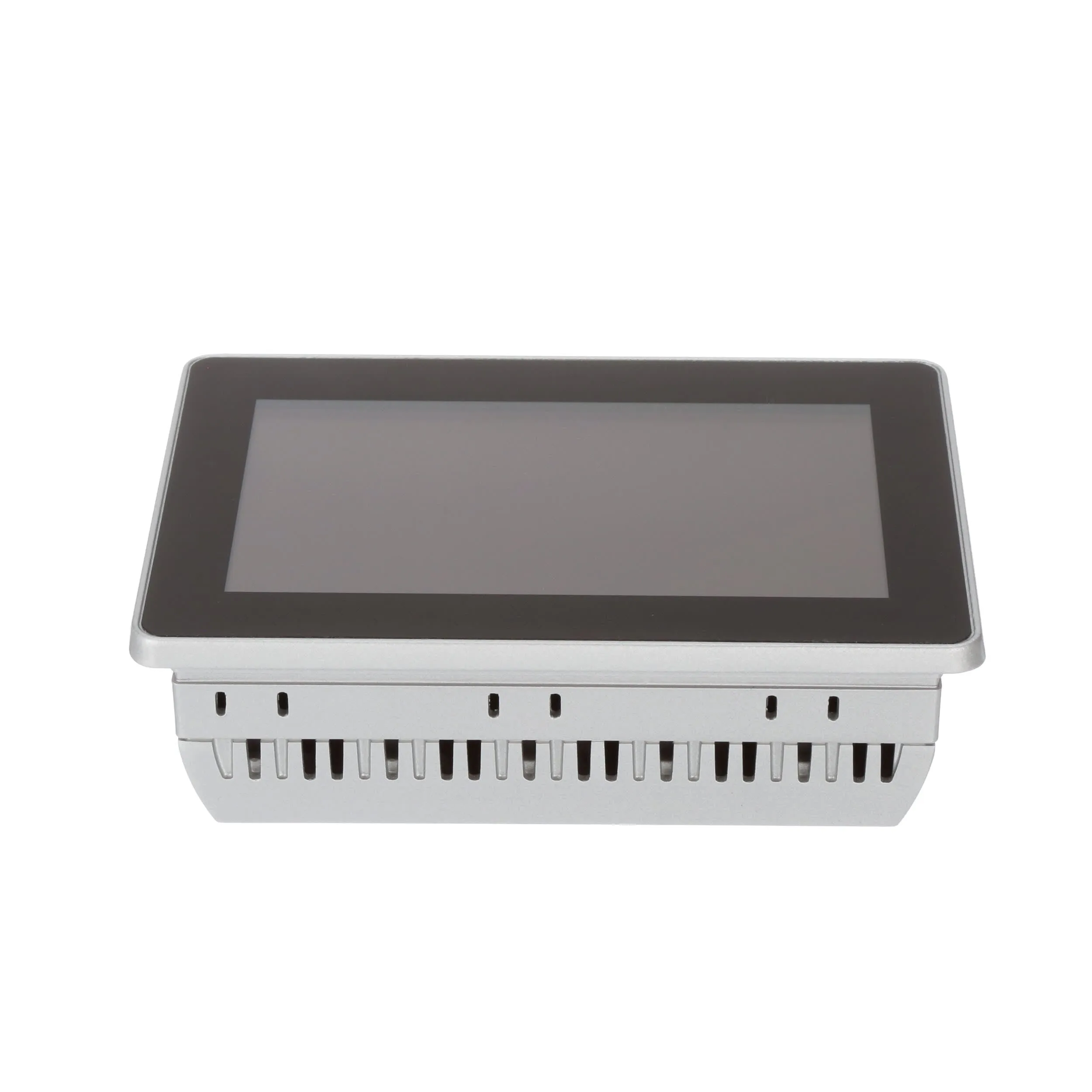

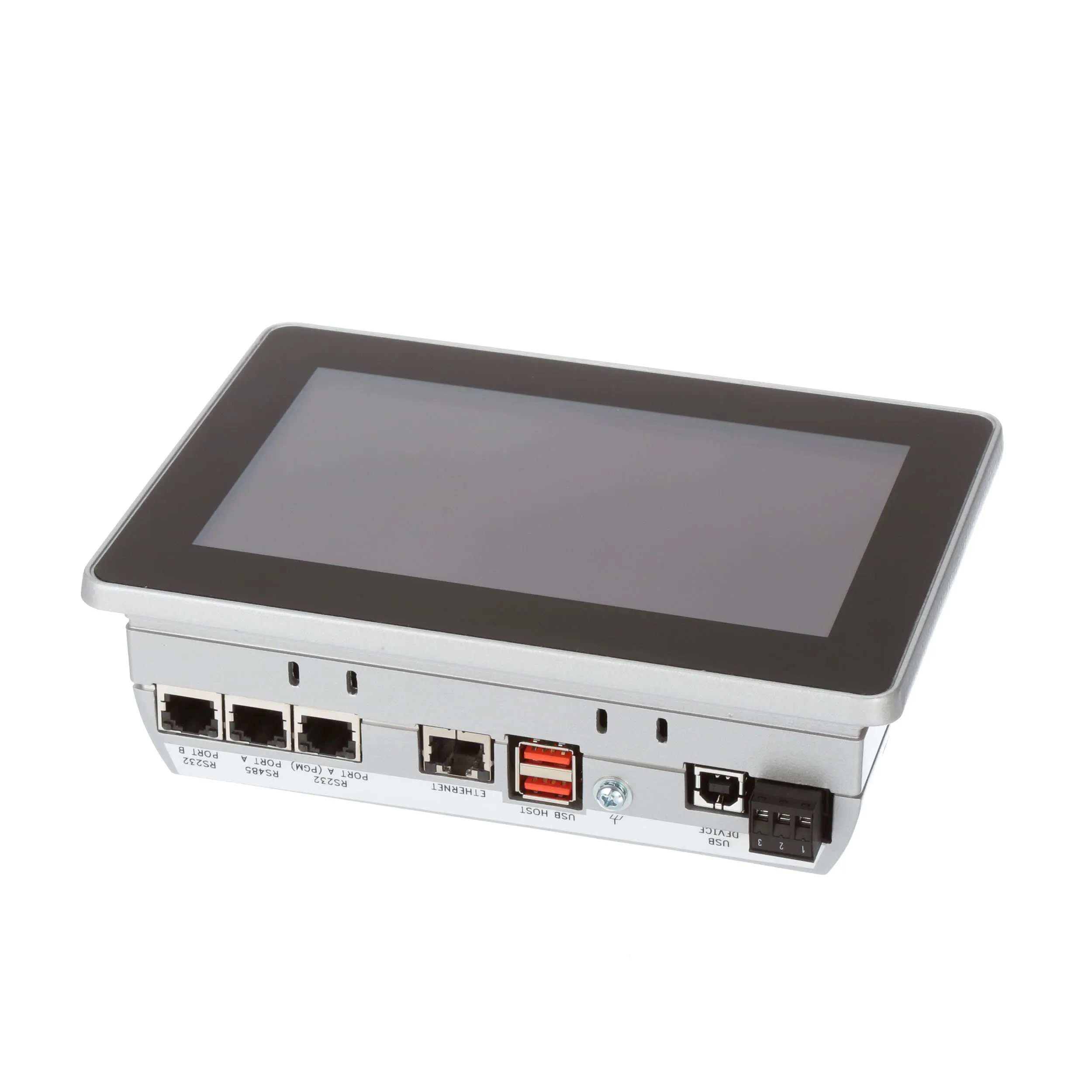

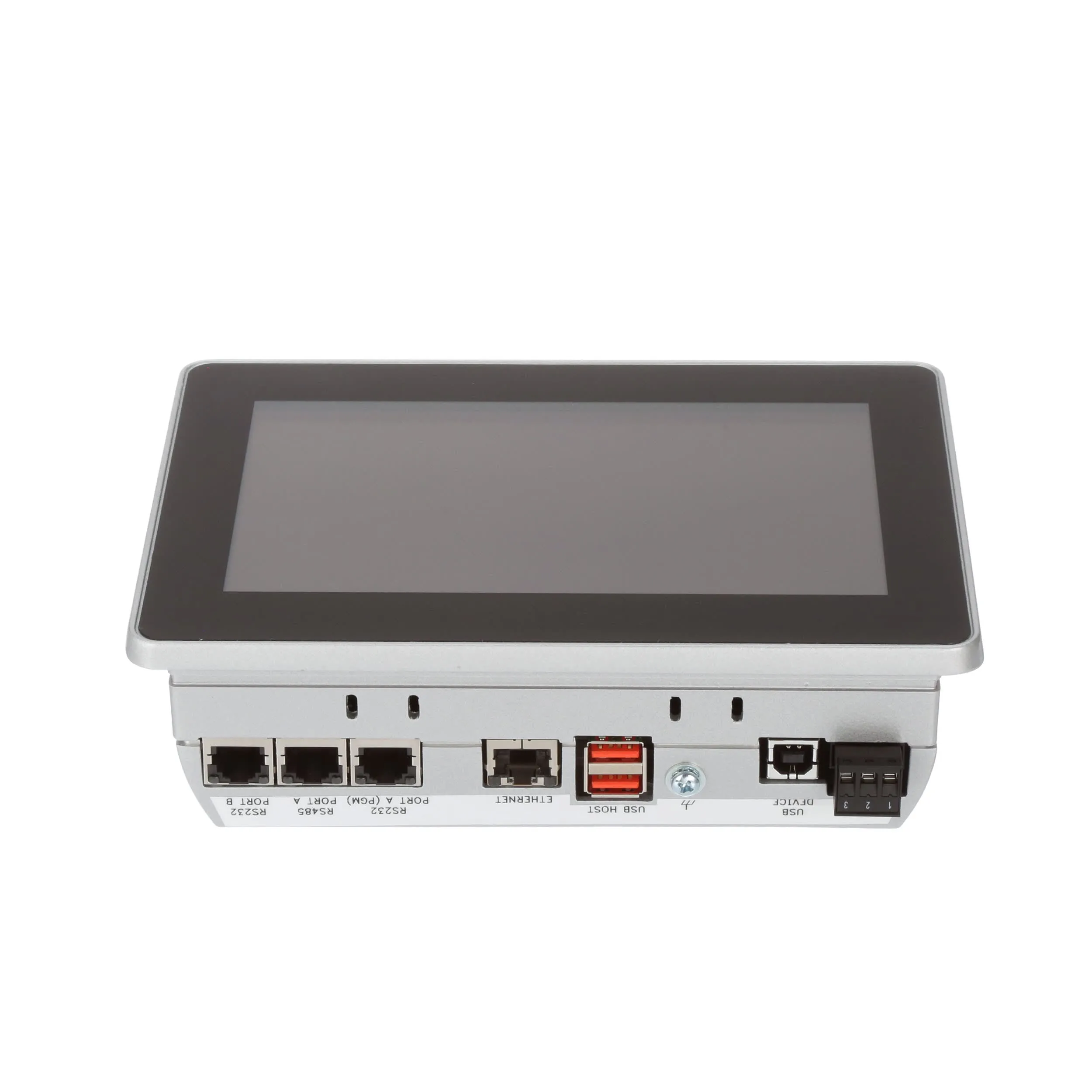

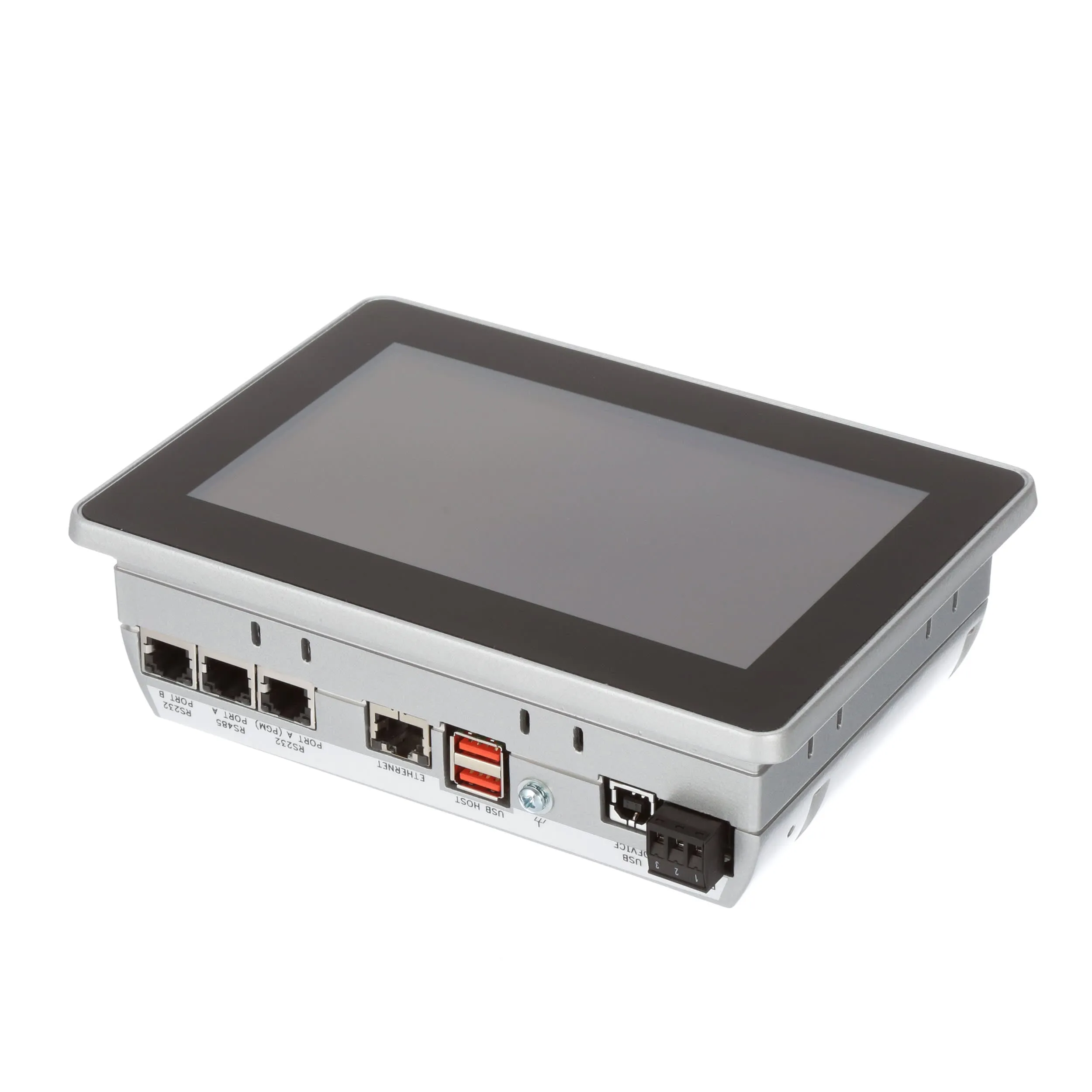

Red Lion GRAPHITE Series – Rugged HMIs, Sleek design. Versatile Plug-in Modules:
Red Lion Graphite advanced operator panels are the industry’s first rugged HMI touchscreens to combine a wide range of versatile plug-in modules with protocol conversion, data logging and web-based monitoring and control. With all cast-aluminum construction and UL Class 1, Division 2, ABS, ATEX and IECEx zone 2/22 approvals, Graphite HMIs support wide operating temperatures and high shock/vibration tolerances to enable you to connect, monitor and control processes regardless of environment. For outdoor applications, sunlight-readable models are available in both 7" and 10" sizes.
Features:
