Feature

• High Performance: High accuracy, fast response, good repeatability
• 3 in one sensor: Humidity/Temperature sensor and BOSH barometric sensor
• Based on the data directly measured by the sensor, relevant common meteorological parameters can be calculated including vapor pressure, dew point, frost point, absolute humidity, vapor density, cloud base height, and altitude.
• Universal Protocol: RS485 communication interface with surge protection
• Reverse power protection and Built-in TVS/ESD protection

Description

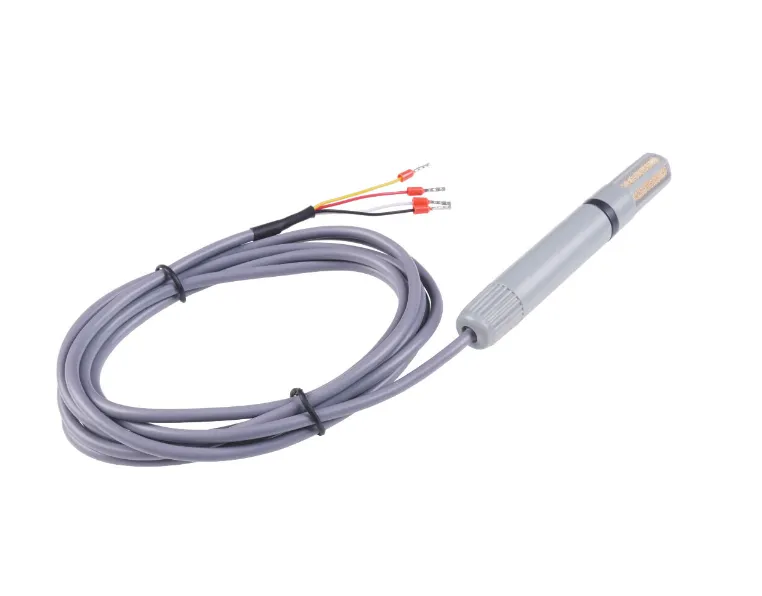

The S-THP-01A offers an integrated solution with a SENSIRION® temperature & humidity sensor and a BOSCH® barometric MEMS chip for fast and precise air temperature, humidity and barometric pressure measurements.

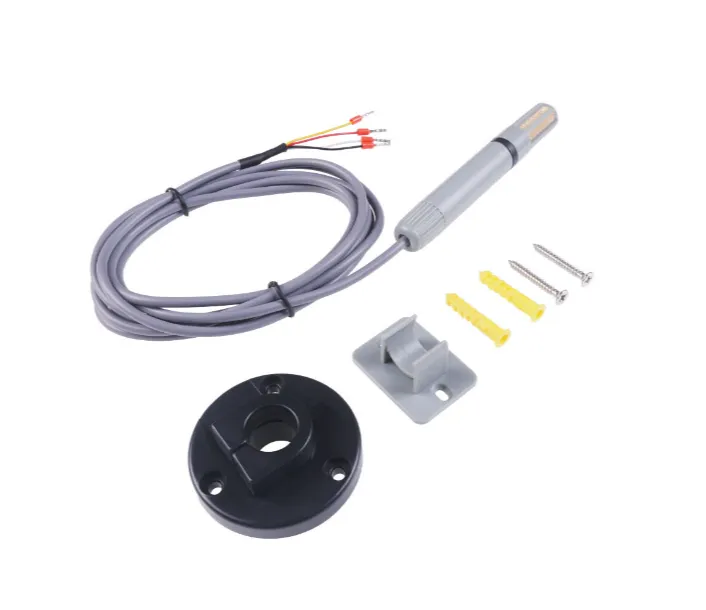

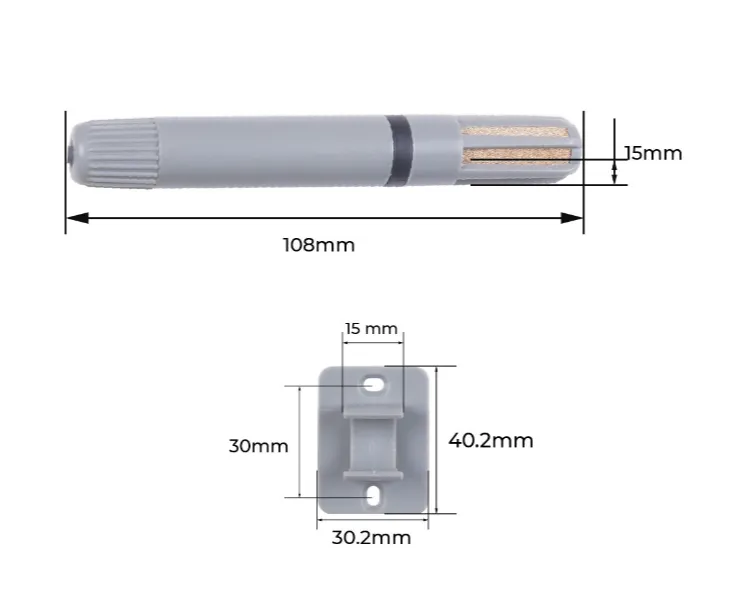

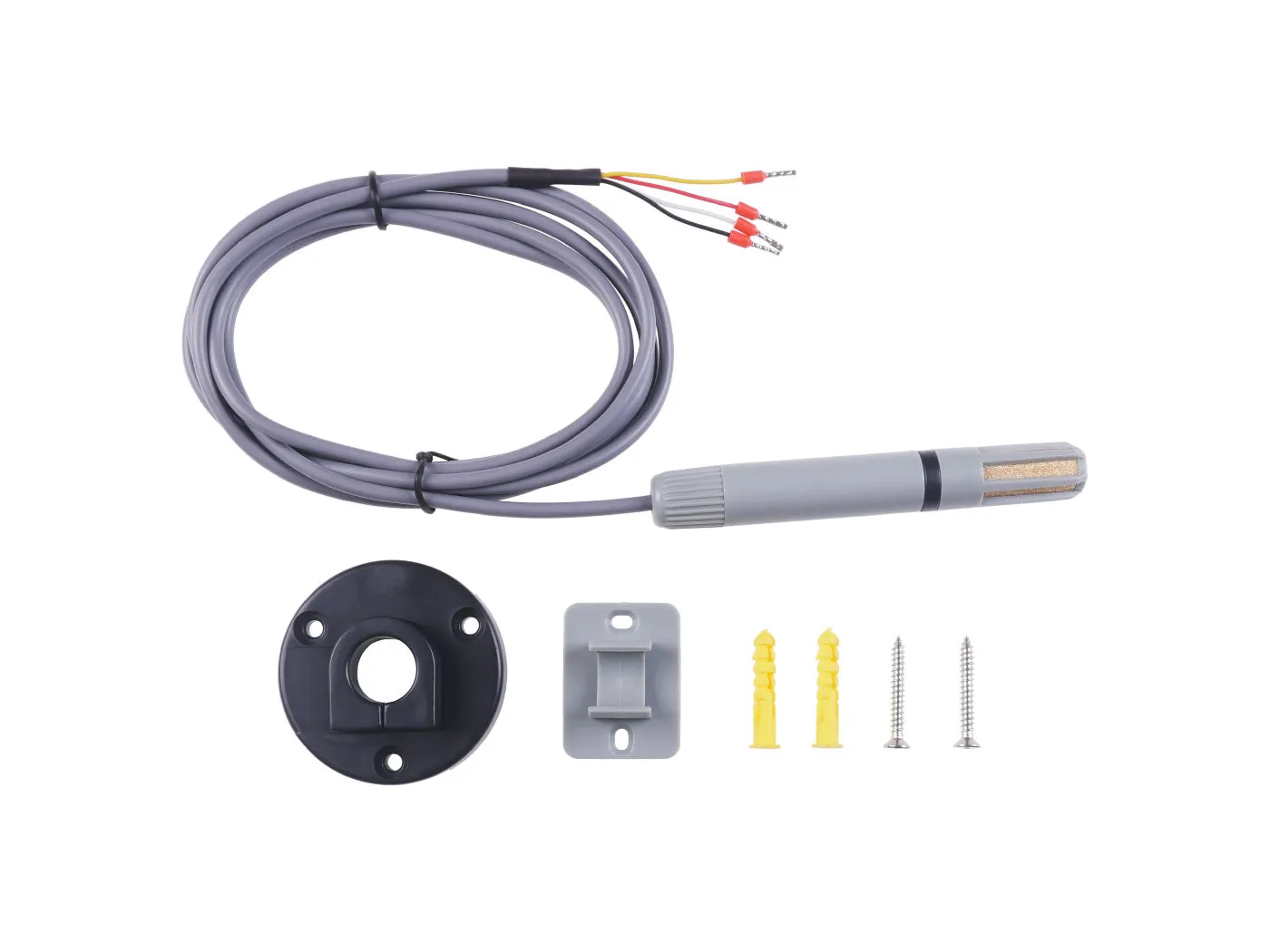

The S-THP-01A boasts a robust design, with its sensing elements tightly integrated onto a PCB at the tip, measuring just 108mm x 16mm. This allows for seamless installation and expansion into any existing system. The factory-calibrated sensors measure temperature, humidity, barometric pressure and more, delivering various meteorological parameters - such as vapor pressure, dew point, frost point, absolute humidity, vapor density, cloud base height and altitude - with precision to the RS485 communication interface and built-in surge protection for reliable data transfer. The sensor can be mounted on walls or flanges for duct insertion.

With low power consumption, it is suitable for battery-powered systems. Reverse power and lightning protection further enhance robustness across various environmental monitoring applications.

The compact form factor combined with individal calibration, flexible mounting options and robust protection make this an ideal sensor for integrating accurate meteorological measurements into new or existing monitoring systems.
