Product Details
＋

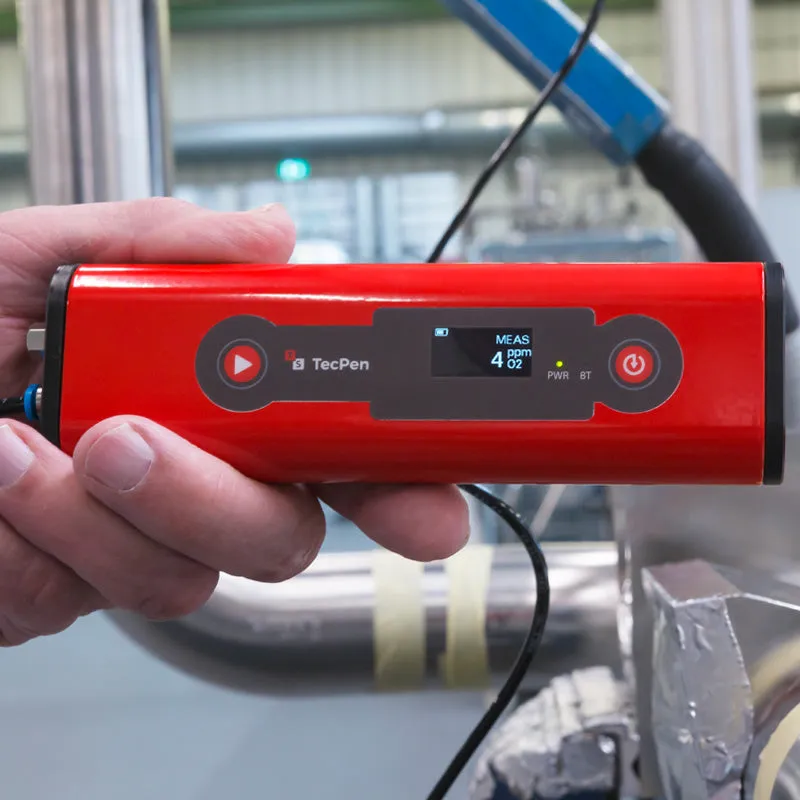

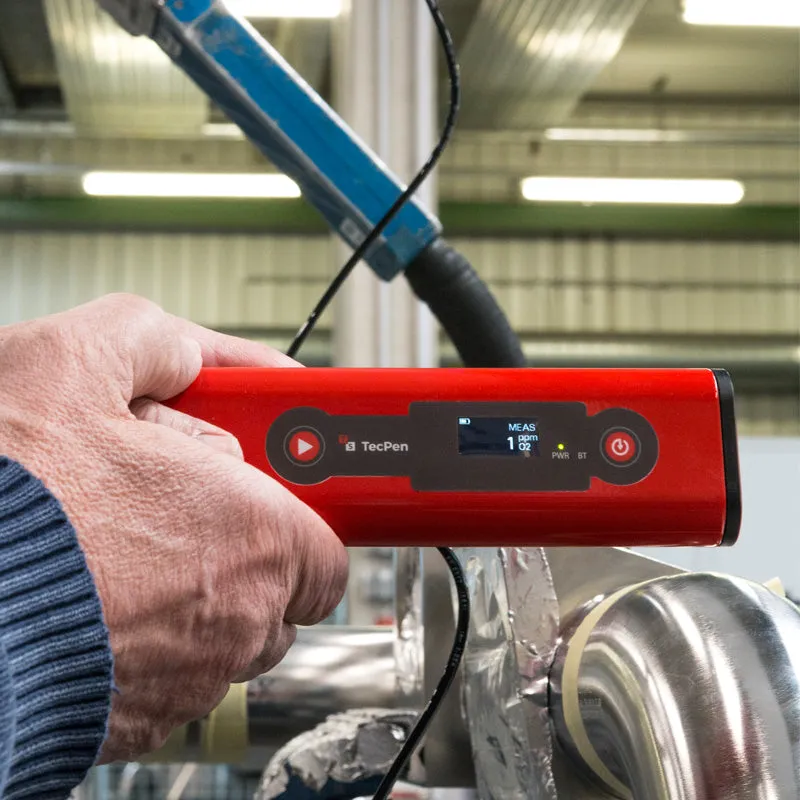

The TecWeld 0-2000ppm O2 Analyzer is designed to provide accurate gas measurements of oxygen content in welding and industrial applications. The analyzer is ideal for assisting welders in ensuring quality work, efficiency, and best welding results.
Features:
- Extremely effective O2 optochemical sensing
- TecWeld enables measurements in 3 seconds
- Large display for gaseous media
- Bluetooth and USB connectivity
- Compact, Modern Sleek Design
- Calibrated prior to shipment
- Data Logging capabilities among Android devices or USB transfer
Industry Applications Include:
- Welding
- Industrial
Models

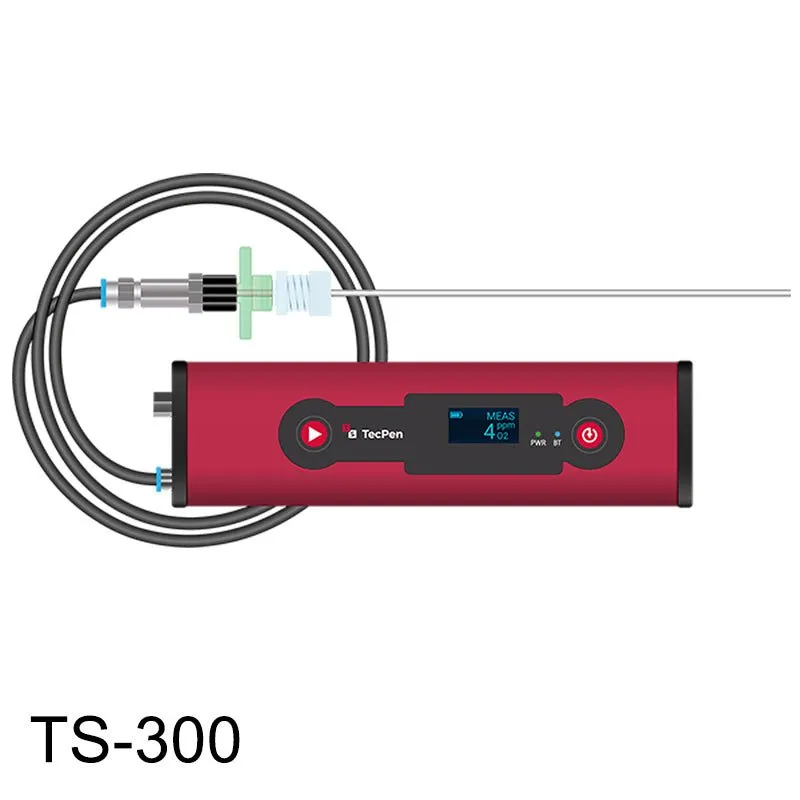

- TS-300 - TecWeld 0-2,000ppm Oxygen
-
TS-302 - TecWeld O2 CO2 Weld Purge Analyzer
Specifications
- Measurement range: 0-2000ppm
- Accuracy @ 0-500 ppm: 2% Mv* ± 10 ppm
- Accuracy @ 500-1000 ppm: 3% Mv* ± 30 ppm
- Accuracy @ 1,000-2,000ppm: 4% Mv*
- Resolution: 0.05%
- Response time at 25°C: < 15 seconds
- Pump flow: 400mL/min.
- Temp. range Min./Max: 14°F-140F° (-10°C-60°C)
- Medium: Gas
- Lifetime of sensor cap: 2 years @ normal welding conditions and atmosphere, 60°C with proper filtering
- Power Supply: 5V USB and LiPo Battery
- Storage Capacity: 4GB
- Rechargeable battery life: > 3 hours per charge
- Data Interface: USB
- Temperature compensation: 50 - 86°C (10 - 30°C)
- Display: OLED
- Cleaning: no organic solvents, 40% EtOH
- Parts touching sample: St.1.4404 / PTFE / glass
- Connection: USB
- Case: Anodized aluminum
- Case with Device Weight: 2.45 lbs.
- Case Dimensions: 12 x 11 x 3.25 inches
- Device Weight: 0.50 lbs.
- Device Dimensions: 7 x 2 x 1 inch
- Protection: IP65
- Manufacturer service Interval: 3 years
- Sensor cap replacement interval: 2 years
- Recommended customer calibration interval: 6 months
Warranty
- 1 year on Tecpen, 3 months on sensor cap.
Datasheets
Accessories
- PRT-SEPTUMS - septum's for tecpen (pack of 18) -
- PRT-NEEDLES - 25/0.8 needles for tecpen (pack of 10) -
